TIS MFTPROPLUSEV Installation Tester with Earth Resistance Test Leads and EV Adaptor

Description

Installation Tester with Earth Resistance Test Leads and EV Adaptor

TIS MFTPROPLUSEV

  • Full Auto Sequence- Continuity, Insulation, Status Checks, Loop Test, Ramp Test (30mA Type A and 6mA Type B).
  • 6mA RDC-DD Test for EVSE Compliant to IEC 62955
  • Guided Help Screen on each Test.
  • Tests Mode 2 and 3 Charging Stations.
  • Fault Simulation (PE and E).
  • Data Saving of Results.
  • Data Export of Results.
  • Phase Presence Indication.
  • Vehicle Simulation (CP) A,B,C and D.
  • Cable Coding Simulation (PP) 13A, 20A, 32A and 63A
  • Ventilated or Non-Ventilated Charging Stations.
  • Single Phase or Three Phase Systems.
  • Type 2 Connection.

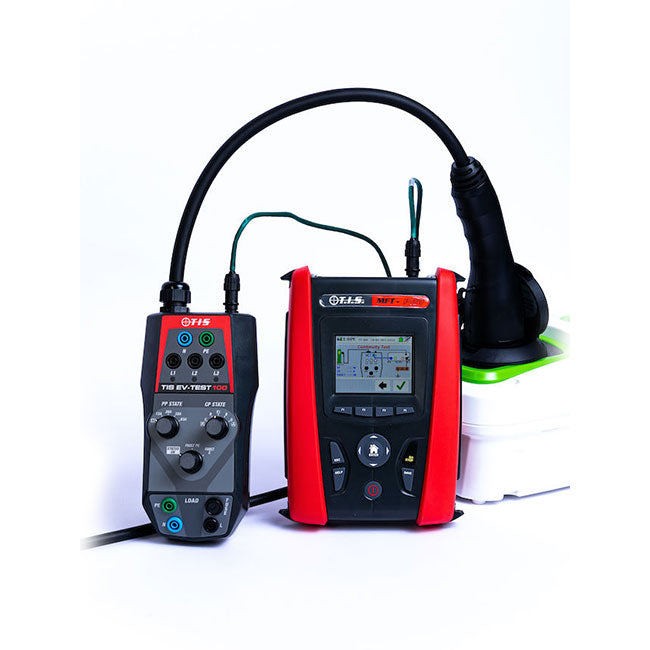

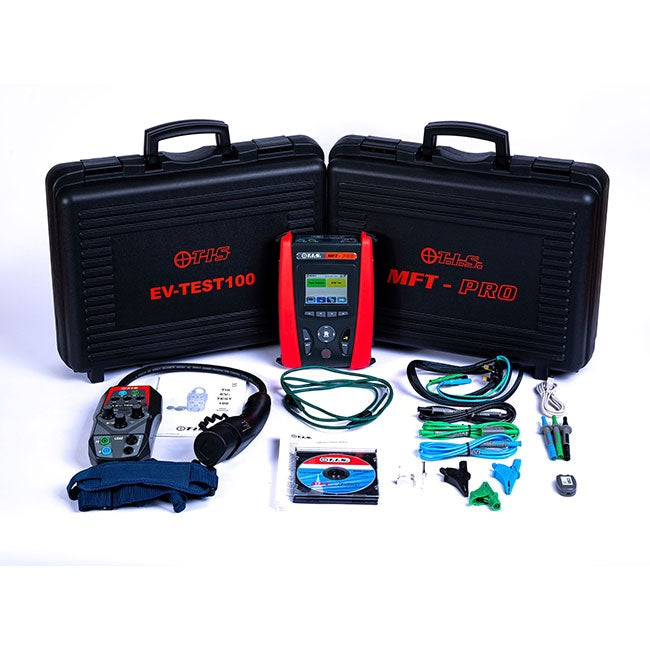

  • Two Hard Robust Carrying Cases Supplied with Link Cable to Link the Multifunction and EVSE Adapter together.
  • TIS EV-TEST100 CAT III 300V.
  • TIS MFTPRO CAT IV 300V.
  • 3 Year Warranty providing the products are serviced by TIS.
  • 6 x 2000mA Rechargeable batteries & charger supplied

The TIS TISPROPLUSEV Installation Tester offers a comprehensive Auto Sequence test for continuity, insulation, loop, and ramp. It includes guided help screens, fault and vehicle simulation, data saving and export, and phase presence indication. Equipped with two hard carrying cases and a 3 year warranty, it's a reliable tool for Mode 2 and 3 charging stations.



.

Brand Test Instrument Solutions
3 Phase Rotation Yes
AC Voltage Measurement 460V AC
Batteries Included Yes
Continuity Check Yes
Continuity Range 0.01 Ω - 100 Ω
Dimensions 225mm(h) x 165mm(w) x 75mm(d)
Display Type LCD
Earth Electrode Test Yes
Insulation resistance Measuring Range 0.01 MΩ - 199.9 MΩ
RCD Settings ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
RCD Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
Safety Range CAT III 240V to earth, maximum 415V between inputs
Standards BS EN 61557-1-2-3-4-5-6-7 17th Amendment 3 and 18th Edition
Warranty 3 Years

Read more

TIS MFTPROPLUSEV Installation Tester with Earth Resistance Test Leads and EV Adaptor

Product form

SKU: TISMFTPROPLUSEV

Installation Tester with Earth Resistance Test Leads and EV Adaptor TIS MFTPROPLUSEV Full Auto Sequence- Continuity, Insulation, Status Checks, Loop... Read more

£1,393.75 ex VAT £1,672.50 inc VAT

Available 1 - 2 working days

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification

    Brand Test Instrument Solutions
    3 Phase Rotation Yes
    AC Voltage Measurement 460V AC
    Batteries Included Yes
    Continuity Check Yes
    Continuity Range 0.01 Ω - 100 Ω
    Dimensions 225mm(h) x 165mm(w) x 75mm(d)
    Display Type LCD
    Earth Electrode Test Yes
    Insulation resistance Measuring Range 0.01 MΩ - 199.9 MΩ
    RCD Settings ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
    RCD Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
    Safety Range CAT III 240V to earth, maximum 415V between inputs
    Standards BS EN 61557-1-2-3-4-5-6-7 17th Amendment 3 and 18th Edition
    Warranty 3 Years
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Installation Tester with Earth Resistance Test Leads and EV Adaptor

    TIS MFTPROPLUSEV

    • Full Auto Sequence- Continuity, Insulation, Status Checks, Loop Test, Ramp Test (30mA Type A and 6mA Type B).
    • 6mA RDC-DD Test for EVSE Compliant to IEC 62955
    • Guided Help Screen on each Test.
    • Tests Mode 2 and 3 Charging Stations.
    • Fault Simulation (PE and E).
    • Data Saving of Results.
    • Data Export of Results.
    • Phase Presence Indication.
    • Vehicle Simulation (CP) A,B,C and D.
    • Cable Coding Simulation (PP) 13A, 20A, 32A and 63A
    • Ventilated or Non-Ventilated Charging Stations.
    • Single Phase or Three Phase Systems.
    • Type 2 Connection.
    • Two Hard Robust Carrying Cases Supplied with Link Cable to Link the Multifunction and EVSE Adapter together.
    • TIS EV-TEST100 CAT III 300V.
    • TIS MFTPRO CAT IV 300V.
    • 3 Year Warranty providing the products are serviced by TIS.
    • 6 x 2000mA Rechargeable batteries & charger supplied

    The TIS TISPROPLUSEV Installation Tester offers a comprehensive Auto Sequence test for continuity, insulation, loop, and ramp. It includes guided help screens, fault and vehicle simulation, data saving and export, and phase presence indication. Equipped with two hard carrying cases and a 3 year warranty, it's a reliable tool for Mode 2 and 3 charging stations.



    .

    Brand Test Instrument Solutions
    3 Phase Rotation Yes
    AC Voltage Measurement 460V AC
    Batteries Included Yes
    Continuity Check Yes
    Continuity Range 0.01 Ω - 100 Ω
    Dimensions 225mm(h) x 165mm(w) x 75mm(d)
    Display Type LCD
    Earth Electrode Test Yes
    Insulation resistance Measuring Range 0.01 MΩ - 199.9 MΩ
    RCD Settings ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
    RCD Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
    Safety Range CAT III 240V to earth, maximum 415V between inputs
    Standards BS EN 61557-1-2-3-4-5-6-7 17th Amendment 3 and 18th Edition
    Warranty 3 Years

    Read more
