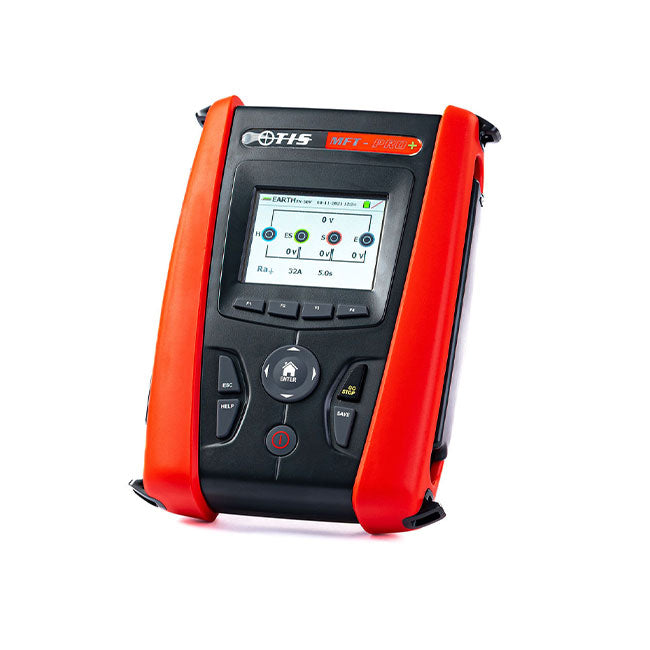

TIS TISMFTPRO+ TRMS Multifunction Tester with EVSE & Earth Electrode Testing Capabilities

Description

TRMS Multifunction Tester with EVSE & Earth Electrode Testing Capabilities

TISMFTPRO+

  • NEW RDC-DD 6mA Test to IEC 62955

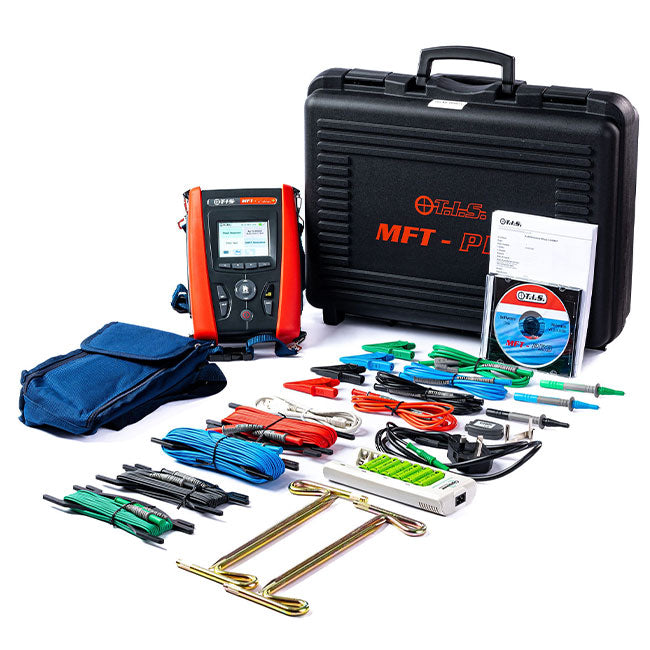

  • 3 & 4 Wire Earth Electrode Test (Spikes and Leads Included)
  • NEW EVSE Testing Capabilities.
  • Full Auto-Sequence using TIS EV-TEST100.
  • NEW 6mA DC RCD & Ramp Test for EVSE Charging Points, PLUS BRAND NEW RDC-DD 6mA Test to IEC 62955
  • NEW Auto Sequence performs Loop, RCD & both cycles of the Ramp Test from pressing the test button once.
  • TFT Large Colour LCD Display 320x240 pixels
  • Phase to Phase Loop Testing
  • TRMS for accurate measurement on noisy & distorted circuits
  • Resistive touch screen, works even with gloves on!
  • Full help schematic display
  • Power quality analysis of single-phase or balanced 3 phase systems
  • Built in fuse characteristic table with a tick (OK) or cross (FAIL) display
  • Measurement of continuity >200mA
  • Supplied with neck strap & harness for hands free use
  • Displays both PFC & PSC simultaneously on no trip test
  • Displays both L-N, L-PE simultaneously on no trip test
  • Compliant with BSEN 61557-1-2-3-4-5-6-7 17th Amendment 3 & 18th Edition
  • Accurate PRO-Lock no trip loop test
  • Phase Sequence Measurement
  • Accurate & reliable no trip loop testing
  • Line-Loop impedance, phase-phase, phase-neutral, phase p-e
  • Insulation test at 50, 100, 250, 500 and 1000V
  • RCD Testing up to 1A or 10A with an optional adapter
  • Automatic RCD test, 0°, 180°, x1, x½, x5, (One trip to the board)
  • Ramp test in one visit
  • Tripping time of general, selective and delayed RCD's, A, AC & B
  • Measurement of voltage drop on lines
  • Measurement of voltage, current, active, reactive & apparent power Voltage & Harmonics up to the 25th
  • With optional adapters will measure: leakage current measurements, current clamps, USB optical cable, RCD up to 10A
  • Memory to 999 locations, 3 level markers
  • PC interface integrated Wi-Fi communication
  • Software included

The TIS TISMFTPROPLUS Multifunction Tester is the ideal diagnostic tool for experts in the EVSE and earth electrode testing fields. Features include RDC-DD 6mA test to IEC 62955, 3 and 4 wire earth electrode testing with included spikes and leads, full auto-sequence using TIS EV-TEST100, TFT LCD colour display, and power quality analysis. With its resistive touch screen, it's perfect for work even when wearing gloves.



.

Brand Test Instrument Solutions
Display LCD
Standards BSEN 61557-1-2-3-4-5-6-7 17th Amendment 3 & 18th Edition
TRMS Yes
Warranty 3 Years

Read more

TIS TISMFTPRO+ TRMS Multifunction Tester with EVSE & Earth Electrode Testing Capabilities

Product form

SKU: TISMFTPROPLUS

TRMS Multifunction Tester with EVSE & Earth Electrode Testing Capabilities TISMFTPRO+ NEW RDC-DD 6mA Test to IEC 62955 3 &... Read more

£1,393.75 ex VAT £1,672.50 inc VAT

Available 1-2 working days

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification

    Brand Test Instrument Solutions
    Display LCD
    Standards BSEN 61557-1-2-3-4-5-6-7 17th Amendment 3 & 18th Edition
    TRMS Yes
    Warranty 3 Years
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    TRMS Multifunction Tester with EVSE & Earth Electrode Testing Capabilities

    TISMFTPRO+

    • NEW RDC-DD 6mA Test to IEC 62955
    • 3 & 4 Wire Earth Electrode Test (Spikes and Leads Included)
    • NEW EVSE Testing Capabilities.
    • Full Auto-Sequence using TIS EV-TEST100.
    • NEW 6mA DC RCD & Ramp Test for EVSE Charging Points, PLUS BRAND NEW RDC-DD 6mA Test to IEC 62955
    • NEW Auto Sequence performs Loop, RCD & both cycles of the Ramp Test from pressing the test button once.
    • TFT Large Colour LCD Display 320x240 pixels
    • Phase to Phase Loop Testing
    • TRMS for accurate measurement on noisy & distorted circuits
    • Resistive touch screen, works even with gloves on!
    • Full help schematic display
    • Power quality analysis of single-phase or balanced 3 phase systems
    • Built in fuse characteristic table with a tick (OK) or cross (FAIL) display
    • Measurement of continuity >200mA
    • Supplied with neck strap & harness for hands free use
    • Displays both PFC & PSC simultaneously on no trip test
    • Displays both L-N, L-PE simultaneously on no trip test
    • Compliant with BSEN 61557-1-2-3-4-5-6-7 17th Amendment 3 & 18th Edition
    • Accurate PRO-Lock no trip loop test
    • Phase Sequence Measurement
    • Accurate & reliable no trip loop testing
    • Line-Loop impedance, phase-phase, phase-neutral, phase p-e
    • Insulation test at 50, 100, 250, 500 and 1000V
    • RCD Testing up to 1A or 10A with an optional adapter
    • Automatic RCD test, 0°, 180°, x1, x½, x5, (One trip to the board)
    • Ramp test in one visit
    • Tripping time of general, selective and delayed RCD's, A, AC & B
    • Measurement of voltage drop on lines
    • Measurement of voltage, current, active, reactive & apparent power Voltage & Harmonics up to the 25th
    • With optional adapters will measure: leakage current measurements, current clamps, USB optical cable, RCD up to 10A
    • Memory to 999 locations, 3 level markers
    • PC interface integrated Wi-Fi communication
    • Software included

    The TIS TISMFTPROPLUS Multifunction Tester is the ideal diagnostic tool for experts in the EVSE and earth electrode testing fields. Features include RDC-DD 6mA test to IEC 62955, 3 and 4 wire earth electrode testing with included spikes and leads, full auto-sequence using TIS EV-TEST100, TFT LCD colour display, and power quality analysis. With its resistive touch screen, it's perfect for work even when wearing gloves.



    .

    Brand Test Instrument Solutions
    Display LCD
    Standards BSEN 61557-1-2-3-4-5-6-7 17th Amendment 3 & 18th Edition
    TRMS Yes
    Warranty 3 Years
