TIS TISMFTPRO-EV Full EVSE Testing Kit

Description

Full EVSE Testing Kit

TISMFTPRO-EV

  • Full Auto Sequence- Continuity, Insulation, Status Checks, Loop Test, Ramp Test (30mA Type A and 6mA Type B).
  • 6mA RDC-DD Test for EVSE Compliant to IEC 62955
  • Guided Help Screen on each Test.
  • Tests Mode 2 and 3 Charging Stations.
  • Fault Simulation (PE and E).
  • Data Saving of Results.
  • Data Export of Results.
  • Phase Presence Indication.
  • Vehicle Simulation (CP) A,B,C and D.
  • Cable Coding Simulation (PP) 13A, 20A, 32A and 63A
  • Venilated or Non-Ventilated Charging Stations.
  • Single Phase or Three Phase Systems.
  • Type 2 Connection.

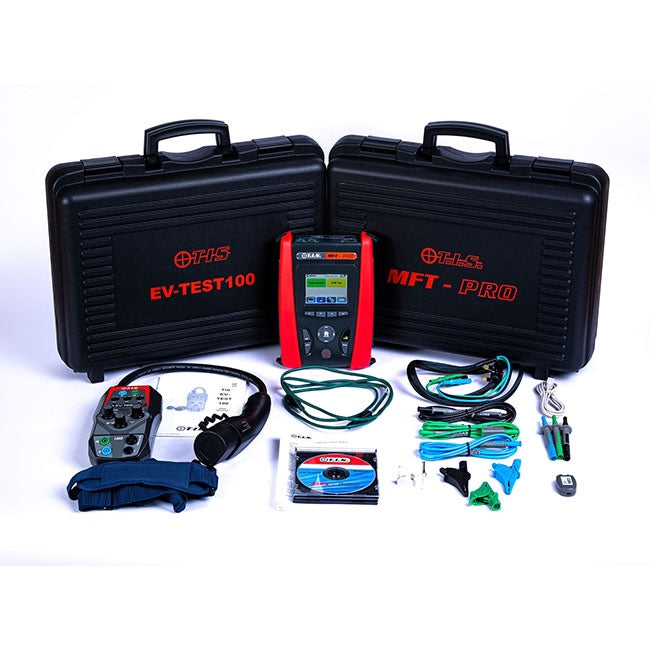

  • Two Hard Robust Carrying Cases Supplied with Link Cable to Link the Multifunction and EVSE Adapter together.
  • TIS EV-TEST100 CAT III 300V.
  • TIS MFTPRO CAT IV 300V.
  • 3 Year Warranty providing the products are serviced by TIS.
  • 6 x 2000mA Rechargeable batteries & charger supplied

This TIS TISMFTPRO-EV Full EVSE Testing Kit offers comprehensive testing capabilities with full auto sequence, insulation, loop and ramp tests, RDC-DD test, fault simulation, data saving and export, vehicle simulation, cable coding simulation, and more. Test Mode 2 and 3 charging stations, single and three phase systems, ventilated and non-ventilated EVSEs, and ensure full compliance with IEC 62955. Supplied with two robust carrying cases and a 3 year warranty.



.

Brand Test Instrument Solutions
3 Phase Rotation Yes
AC Voltage Measurement 460V AC
Batteries Included
 Yes
Battery Level Indicator
 Yes
Battery Size AA
Colour Red/Black
Continuity Check Yes
Continuity Range 0.01 Ω - 100 Ω
Dimensions (H)225 mm x (W)165 mm x (D)75 mm
Display Type LCD
Guarantee 3 Years
Insulation Resistance Measuring Range
 0.01 MΩ - 199.9 MΩ
Insulation Test Voltage 50V/100V/500V/1000V
Loop Impedance Range
 0.01 Ω - 199 Ω
RCD Settings ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
RCD Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
Safety Range CAT III 240V to earth, maximum 415V between inputs
Standards IEC/EN61010-1, IEC/EN61851-1, IEC/EN60364-7-722, BS EN 61557-1-2-3-4-5-6-7 17th Amendment 3 and 18th Edition

Read more

TIS TISMFTPRO-EV Full EVSE Testing Kit

Product form

SKU: TISMFTPRO-EV

Full EVSE Testing Kit TISMFTPRO-EV Full Auto Sequence- Continuity, Insulation, Status Checks, Loop Test, Ramp Test (30mA Type A and... Read more

£1,222.10 ex VAT £1,466.52 inc VAT

Available 1 - 2 working days

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification

    Brand Test Instrument Solutions
    3 Phase Rotation Yes
    AC Voltage Measurement 460V AC
    Batteries Included
    		 Yes
    Battery Level Indicator
    		 Yes
    Battery Size AA
    Colour Red/Black
    Continuity Check Yes
    Continuity Range 0.01 Ω - 100 Ω
    Dimensions (H)225 mm x (W)165 mm x (D)75 mm
    Display Type LCD
    Guarantee 3 Years
    Insulation Resistance Measuring Range
    		 0.01 MΩ - 199.9 MΩ
    Insulation Test Voltage 50V/100V/500V/1000V
    Loop Impedance Range
    		 0.01 Ω - 199 Ω
    RCD Settings ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
    RCD Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
    Safety Range CAT III 240V to earth, maximum 415V between inputs
    Standards IEC/EN61010-1, IEC/EN61851-1, IEC/EN60364-7-722, BS EN 61557-1-2-3-4-5-6-7 17th Amendment 3 and 18th Edition
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Full EVSE Testing Kit

    TISMFTPRO-EV

    • Full Auto Sequence- Continuity, Insulation, Status Checks, Loop Test, Ramp Test (30mA Type A and 6mA Type B).
    • 6mA RDC-DD Test for EVSE Compliant to IEC 62955
    • Guided Help Screen on each Test.
    • Tests Mode 2 and 3 Charging Stations.
    • Fault Simulation (PE and E).
    • Data Saving of Results.
    • Data Export of Results.
    • Phase Presence Indication.
    • Vehicle Simulation (CP) A,B,C and D.
    • Cable Coding Simulation (PP) 13A, 20A, 32A and 63A
    • Venilated or Non-Ventilated Charging Stations.
    • Single Phase or Three Phase Systems.
    • Type 2 Connection.
    • Two Hard Robust Carrying Cases Supplied with Link Cable to Link the Multifunction and EVSE Adapter together.
    • TIS EV-TEST100 CAT III 300V.
    • TIS MFTPRO CAT IV 300V.
    • 3 Year Warranty providing the products are serviced by TIS.
    • 6 x 2000mA Rechargeable batteries & charger supplied

    This TIS TISMFTPRO-EV Full EVSE Testing Kit offers comprehensive testing capabilities with full auto sequence, insulation, loop and ramp tests, RDC-DD test, fault simulation, data saving and export, vehicle simulation, cable coding simulation, and more. Test Mode 2 and 3 charging stations, single and three phase systems, ventilated and non-ventilated EVSEs, and ensure full compliance with IEC 62955. Supplied with two robust carrying cases and a 3 year warranty.



    .

    Brand Test Instrument Solutions
    3 Phase Rotation Yes
    AC Voltage Measurement 460V AC
    Batteries Included
    		 Yes
    Battery Level Indicator
    		 Yes
    Battery Size AA
    Colour Red/Black
    Continuity Check Yes
    Continuity Range 0.01 Ω - 100 Ω
    Dimensions (H)225 mm x (W)165 mm x (D)75 mm
    Display Type LCD
    Guarantee 3 Years
    Insulation Resistance Measuring Range
    		 0.01 MΩ - 199.9 MΩ
    Insulation Test Voltage 50V/100V/500V/1000V
    Loop Impedance Range
    		 0.01 Ω - 199 Ω
    RCD Settings ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
    RCD Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
    Safety Range CAT III 240V to earth, maximum 415V between inputs
    Standards IEC/EN61010-1, IEC/EN61851-1, IEC/EN60364-7-722, BS EN 61557-1-2-3-4-5-6-7 17th Amendment 3 and 18th Edition

    Read more
