TIS TISMFTECO-EV Multifunction Installation Tester

Description

Multifunction Installation Tester

TISMFTECO-EV

  • 2* & 3 wire loop tests
  • Accurate & Reliable "No Trip" testing
  • Line / Loop Impedance tests
  • Phase-Phase, Phase-Neutral, Phase-PE with 2 wire mode
  • TRMS for accurate measurements on noisy and distorted circuits
  • LPE/LN with PFC/PSC results displayed on a single test
  • New Auto Start Mode "on" or "off" for easy testing
  • Dual test buttons for left or right handed use
  • Phase to Phase Loop Test
  • Full help schematic display
  • Large COG graphic LCD display (128x128 pixels)
  • Compliant with BSEN 61557-12-3-4-5-6-7 18th Edition
  • RCD testing 6mA to 1A
  • Automatic RCD test, 0°, 180° x 1 x 5 x ½ with ramp & contact voltage tests
  • Auto mode for loop & rcd tests in a single test
  • Tripping of general, selective RCD's A, AC
  • Continuity Test of earth conductors with test current >200mA
  • Phase Sequence Measurement
  • Insulation test at 50, 100, 250, 500 & 1000V
  • EVSE Testing Capabilities
  • 6mA RDC-DD for EVSE Charging Stations to IEC 62955
  • Tests Mode 2 & 3 Charging Stations using TIS EV-TEST100
  • Fault Simulation (PE & E)
  • Vehicle Status Simulation (CP) A,B,C,D
  • Cable Coding Simulation (PP) 13A, 20A, 32A & 63A
  • Phase Presence Indication
  • CAT III 300V (TIS EV-TEST100)
  • Hard Carry Case Supplied (TIS EV-TEST100)

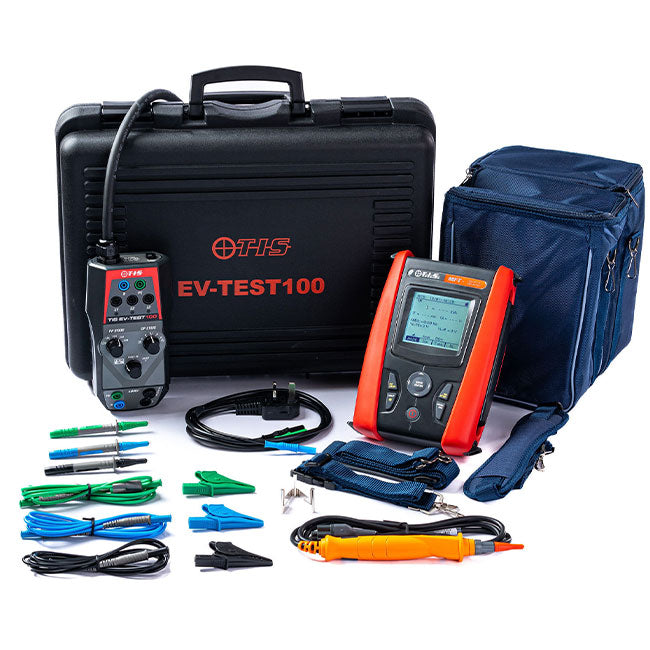

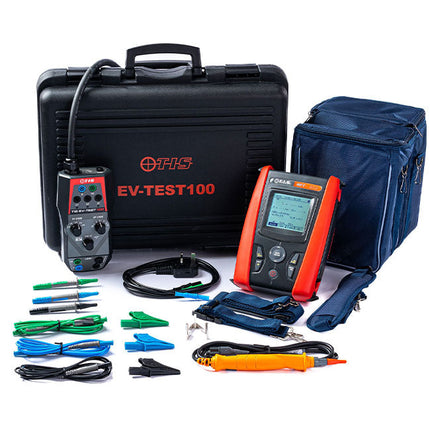

The TIS TISMFTECO-EV Multifunction Installation Tester provides accurate and reliable 2* and 3 wire loop tests for professional use. With TRMS for accurate measurements on noisy and distorted circuits, and a full help schematic display, this one-of-a-kind tool can automatically detect and test RCDs between 6mA to 1A, phase-to-phase loop tests, and a large COG LCD display with 128x128 pixels. It meets BSEN 61557-12-3-4-5-6-7 18th Edition standards.



.

Brand Test Instrument Solutions
Batteries Included
 Yes
Battery Level Indicator
 Yes
Battery Size AA
Colour Red/Black
Display Type LCD
Guarantee 3 Years
IP Rating IP40
Insulation Test Voltage 50V/100V/500V/1000V
RCD Settings
½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
RCD Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
Safety Range CAT III 600V, CAT IV 300V
Standards
BS EN 61557-1-2-3-4-5-6-7 18th Edition
Supplied with EV Test-100, Test leads, probes with croc clips, PR400 remote switch, neck strap, safety harness, 6 x AA batteries, carry case and 12 months calibration certificate

Read more

TIS TISMFTECO-EV Multifunction Installation Tester

Product form

SKU: TISMFTECO-EV

Multifunction Installation Tester TISMFTECO-EV 2* & 3 wire loop tests Accurate & Reliable "No Trip" testing Line / Loop Impedance... Read more

£960.86 ex VAT £1,153.03 inc VAT

Available 1 - 2 working days

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification

    Brand Test Instrument Solutions
    Batteries Included
    		 Yes
    Battery Level Indicator
    		 Yes
    Battery Size AA
    Colour Red/Black
    Display Type LCD
    Guarantee 3 Years
    IP Rating IP40
    Insulation Test Voltage 50V/100V/500V/1000V
    RCD Settings
    ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
    RCD Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
    Safety Range CAT III 600V, CAT IV 300V
    Standards
    BS EN 61557-1-2-3-4-5-6-7 18th Edition
    Supplied with EV Test-100, Test leads, probes with croc clips, PR400 remote switch, neck strap, safety harness, 6 x AA batteries, carry case and 12 months calibration certificate
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Multifunction Installation Tester

    TISMFTECO-EV

    • 2* & 3 wire loop tests
    • Accurate & Reliable "No Trip" testing
    • Line / Loop Impedance tests
    • Phase-Phase, Phase-Neutral, Phase-PE with 2 wire mode
    • TRMS for accurate measurements on noisy and distorted circuits
    • LPE/LN with PFC/PSC results displayed on a single test
    • New Auto Start Mode "on" or "off" for easy testing
    • Dual test buttons for left or right handed use
    • Phase to Phase Loop Test
    • Full help schematic display
    • Large COG graphic LCD display (128x128 pixels)
    • Compliant with BSEN 61557-12-3-4-5-6-7 18th Edition
    • RCD testing 6mA to 1A
    • Automatic RCD test, 0°, 180° x 1 x 5 x ½ with ramp & contact voltage tests
    • Auto mode for loop & rcd tests in a single test
    • Tripping of general, selective RCD's A, AC
    • Continuity Test of earth conductors with test current >200mA
    • Phase Sequence Measurement
    • Insulation test at 50, 100, 250, 500 & 1000V
    • EVSE Testing Capabilities
    • 6mA RDC-DD for EVSE Charging Stations to IEC 62955
    • Tests Mode 2 & 3 Charging Stations using TIS EV-TEST100
    • Fault Simulation (PE & E)
    • Vehicle Status Simulation (CP) A,B,C,D
    • Cable Coding Simulation (PP) 13A, 20A, 32A & 63A
    • Phase Presence Indication
    • CAT III 300V (TIS EV-TEST100)
    • Hard Carry Case Supplied (TIS EV-TEST100)

    The TIS TISMFTECO-EV Multifunction Installation Tester provides accurate and reliable 2* and 3 wire loop tests for professional use. With TRMS for accurate measurements on noisy and distorted circuits, and a full help schematic display, this one-of-a-kind tool can automatically detect and test RCDs between 6mA to 1A, phase-to-phase loop tests, and a large COG LCD display with 128x128 pixels. It meets BSEN 61557-12-3-4-5-6-7 18th Edition standards.



    .

    Brand Test Instrument Solutions
    Batteries Included
    		 Yes
    Battery Level Indicator
    		 Yes
    Battery Size AA
    Colour Red/Black
    Display Type LCD
    Guarantee 3 Years
    IP Rating IP40
    Insulation Test Voltage 50V/100V/500V/1000V
    RCD Settings
    ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
    RCD Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
    Safety Range CAT III 600V, CAT IV 300V
    Standards
    BS EN 61557-1-2-3-4-5-6-7 18th Edition
    Supplied with EV Test-100, Test leads, probes with croc clips, PR400 remote switch, neck strap, safety harness, 6 x AA batteries, carry case and 12 months calibration certificate

    Read more
