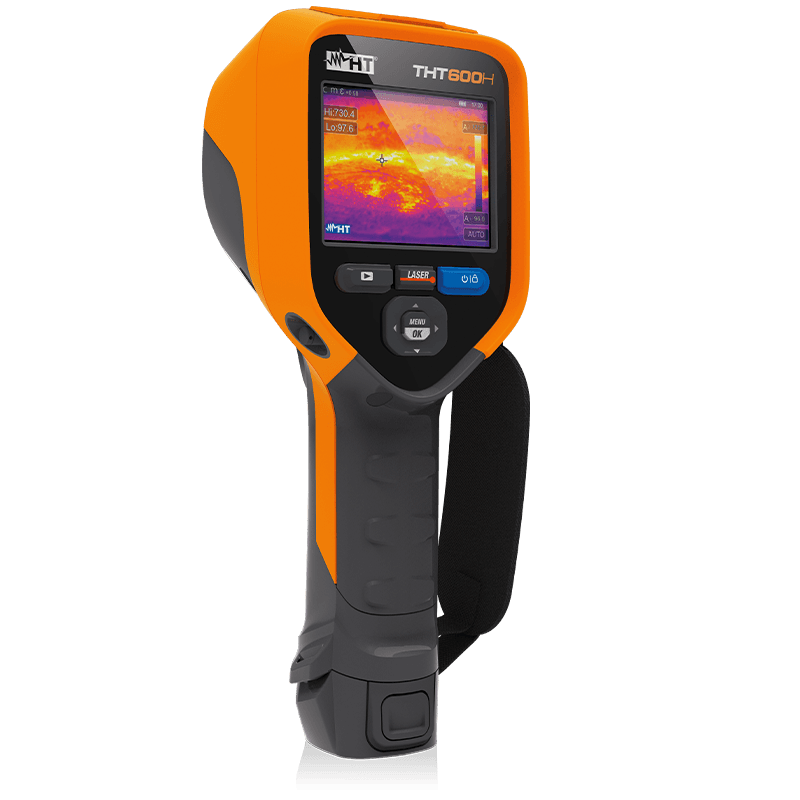

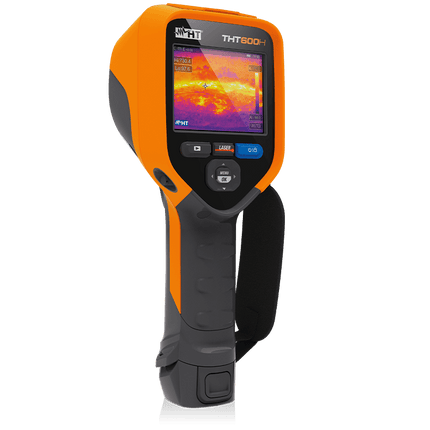

Advanced High Temperature Thermal Imaging Camera 384 x 288 Pixel
TIS THT600H
-
IR Resolution: 384x288 pxl
-
Temperature Range: -20° ÷ 1200°C
-
Image Frequency: 50Hz
-
Thermal Sensitivity (NETD): <0.05°C @ 30°C / 50mK
-
Field of View (FOV): 17° x 12.7°
-
Focus Mode: Manual focus for optimal precision
-
Picture in Picture & AutoFusion Image Enhancement: Enhances image clarity and detail
-
Measurement Tools: Includes center spot, hot/cold spots, multiple areas, and screening mode
-
IR Video Recording: Allows for capturing thermal videos for later analysis
-
Measurement Corrections: Adjust for emissivity, reflected temperature, ambient temperature, and other factors
-
Laser Pointer & Laser Distance Meter: For quick and accurate distance measurement
-
Internal Memory: 3.4 GB for storing thermal data
-
Wi-Fi & USB Connectivity: Allows for data transfer and remote operation
-
Battery Life: 4 hours of continuous operation
-
Size: 240 x 101 x 110mm
The THT600H is an advanced professional thermal imaging camera designed for industrial and manufacturing environments, offering exceptional performance with a high-resolution 384x288 pxl IR sensor. With a specialized high-temperature measuring range from -20°C to 1200°C, it is the ideal tool for monitoring critical systems and processes. Its 17.3° x 12.7° field of view enables precise thermal imaging, allowing for high-quality thermal images and videos, and supports powerful features like AutoFusion and Picture-in-Picture for enhanced visual clarity.
Equipped with a high-brightness capacitive touch-screen display and a modern internal icon structure, the THT600H is designed for user-friendly operation in diverse environments. The camera’s ergonomic strap provides comfort for extended use, while the integrated laser distance meter enables accurate measurements of the distance to the subject under analysis.
Key features also include Wi-Fi connectivity, allowing seamless downloading of thermograms to mobile devices. Using the convenient HT Pro Camera application, you can quickly create PDF reports and share them directly. Whether you're conducting routine inspections, preventive maintenance, or high-temperature assessments, the THT600H is your go-to solution for reliability and accuracy.
The THT600H thermal camera is CE-marked and complies with EMC 2014/30/EU, IEC/EN61326, and IEC/EN61010-1 standards, ensuring top-notch quality and safety for industrial use.
.
| IR Resolution |
384x288 pxl |
| Temperature range |
-20° ÷ 650°C |
Image frequency
|
50Hz |
Thermal sensitivity / NETD
|
<0.05°C @ 30°C / 50mK
|
| Field of view (FOV) |
17° x 12.7° |
| Focal length |
f 1.0 |
| Lens |
22mm |
| IFOV |
0.77mrad |
| Focus mode |
manual focus |
| Uncertainty about the measure |
±2°C (±3.6°F) o±2% of reading |
| Digital zoom |
1x ÷ 32x |
| Measurement tools (in live mode) |
none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode |
| Area measurement information |
max, min, AVG |
| Measurement corrections |
emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation |
| Colour Palettes |
iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm |
| Span Mode |
Automatic / Manual / Histogram |
| Internal memory storage |
3,4 GB |
| On-camera report building |
text notes, voice notes |
| Communication modes |
micro USB, Wi-fi, micro SD, micro HDMI |
| Display |
touch screen |
| Battery operation time |
4 hours |
| Size (LxWxH) |
240 x 101 x 110mm
|
