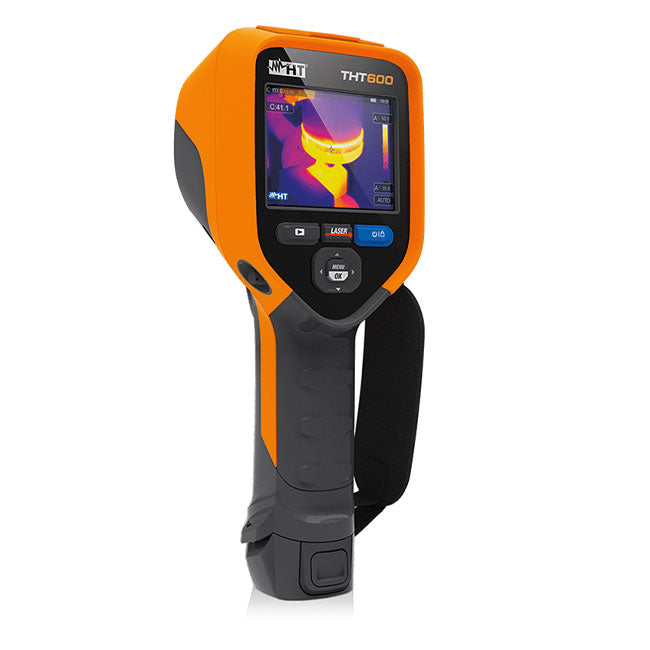

TIS THT600 Professional Thermal Imaging Camera 384 x 288 Pixel

Description

Professional Thermal Imaging Camera 384 x 288 Pixel

TIS THT600

  • Field of View (FOV): 17° x 12.7°, designed to focus on a small to medium-sized area for detailed, high-quality thermal imaging.
  • Thermal Sensitivity (NETD): Exceptional sensitivity of <0.05°C (50mK) to detect even the smallest temperature variations.
  • IFOV (Instantaneous Field of View): 0.77mrad for fine measurement resolution.
  • Digital Zoom: The 1x to 32x digital zoom offers flexibility in viewing and analysing areas of interest in greater detail.
  • Internal Memory: 3.4 GB of storage for saving thermal images, videos, and reports for easy access and retrieval.
  • Colour Palettes: Select from a wide range of colour palettes, such as iron, rainbow, white hot, black hot, and others, to optimize image contrast and visibility.
  • Internal Memory: Store your images, video recordings, and reports with 3.4 GB of internal memory for easy access and retrieval.

The THT600 is the advanced professional thermal imaging camera designed for diverse applications, including industrial inspections, construction site analysis, and human temperature screening. Equipped with a high-resolution 384x288pxl IR sensor, it provides crystal-clear thermal images and videos to detect issues that might not be visible to the naked eye. With two distinct measurement ranges (-20°C to 650°C and 32°C to 42°C), the THT600 ensures versatility, making it ideal for both high-temperature systems and human body temperature checks, essential for safety and health monitoring.

The THT600 is engineered to meet the demanding needs of both industrial and healthcare environments. Whether you're conducting temperature screenings or performing routine maintenance, the THT600 provides the tools necessary for fast, efficient, and precise thermal inspections.

Elevate your diagnostic capabilities with the THT600 – the advanced thermal camera that blends high performance, versatility, and ease of use.

.

IR Resolution 384x288 pxl
Temperature range -20° ÷ 650°C
Image frequency
 50Hz
Thermal sensitivity / NETD
 <0.05°C @ 30°C / 50mK
Field of view (FOV) 17° x 12.7°
Focal length f 1.0
Lens 22mm
IFOV 0.77mrad
Focus mode manual focus
Built-in camera 2 MP, focus free
Uncertainty about the measure ±2°C (±3.6°F) o±2% of reading
Digital zoom 1x ÷ 32x
Measurement tools (in live mode) none, centre spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
Area measurement information max, min, AVG
Measurement corrections emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
Colour Palettes iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
Span modes Automatic / Manual / Histogram
Internal memory storage 3,4 GB
On-camera report building text notes, voice notes
Communication modes micro USB, Wi-fi, micro SD, micro HDMI
Display touch screen
Battery operation time 4 hours
Size (LxWxH) 240 x 101 x 110mm

Read more

TIS THT600 Professional Thermal Imaging Camera 384 x 288 Pixel

Product form

SKU: THT600

Professional Thermal Imaging Camera 384 x 288 Pixel TIS THT600 Field of View (FOV): 17° x 12.7°, designed to focus... Read more

£6,151.61 ex VAT £7,381.93 inc VAT

Available 1 - 2 working days

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    IR Resolution 384x288 pxl
    Temperature range -20° ÷ 650°C
    Image frequency
    		 50Hz
    Thermal sensitivity / NETD
    		 <0.05°C @ 30°C / 50mK
    Field of view (FOV) 17° x 12.7°
    Focal length f 1.0
    Lens 22mm
    IFOV 0.77mrad
    Focus mode manual focus
    Built-in camera 2 MP, focus free
    Uncertainty about the measure ±2°C (±3.6°F) o±2% of reading
    Digital zoom 1x ÷ 32x
    Measurement tools (in live mode) none, centre spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
    Area measurement information max, min, AVG
    Measurement corrections emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
    Colour Palettes iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
    Span modes Automatic / Manual / Histogram
    Internal memory storage 3,4 GB
    On-camera report building text notes, voice notes
    Communication modes micro USB, Wi-fi, micro SD, micro HDMI
    Display touch screen
    Battery operation time 4 hours
    Size (LxWxH) 240 x 101 x 110mm
      Downloads

    Description

    Professional Thermal Imaging Camera 384 x 288 Pixel

    TIS THT600

    • Field of View (FOV): 17° x 12.7°, designed to focus on a small to medium-sized area for detailed, high-quality thermal imaging.
    • Thermal Sensitivity (NETD): Exceptional sensitivity of <0.05°C (50mK) to detect even the smallest temperature variations.
    • IFOV (Instantaneous Field of View): 0.77mrad for fine measurement resolution.
    • Digital Zoom: The 1x to 32x digital zoom offers flexibility in viewing and analysing areas of interest in greater detail.
    • Internal Memory: 3.4 GB of storage for saving thermal images, videos, and reports for easy access and retrieval.
    • Colour Palettes: Select from a wide range of colour palettes, such as iron, rainbow, white hot, black hot, and others, to optimize image contrast and visibility.
    • Internal Memory: Store your images, video recordings, and reports with 3.4 GB of internal memory for easy access and retrieval.

    The THT600 is the advanced professional thermal imaging camera designed for diverse applications, including industrial inspections, construction site analysis, and human temperature screening. Equipped with a high-resolution 384x288pxl IR sensor, it provides crystal-clear thermal images and videos to detect issues that might not be visible to the naked eye. With two distinct measurement ranges (-20°C to 650°C and 32°C to 42°C), the THT600 ensures versatility, making it ideal for both high-temperature systems and human body temperature checks, essential for safety and health monitoring.

    The THT600 is engineered to meet the demanding needs of both industrial and healthcare environments. Whether you're conducting temperature screenings or performing routine maintenance, the THT600 provides the tools necessary for fast, efficient, and precise thermal inspections.

    Elevate your diagnostic capabilities with the THT600 – the advanced thermal camera that blends high performance, versatility, and ease of use.

    .

    IR Resolution 384x288 pxl
    Temperature range -20° ÷ 650°C
    Image frequency
    		 50Hz
    Thermal sensitivity / NETD
    		 <0.05°C @ 30°C / 50mK
    Field of view (FOV) 17° x 12.7°
    Focal length f 1.0
    Lens 22mm
    IFOV 0.77mrad
    Focus mode manual focus
    Built-in camera 2 MP, focus free
    Uncertainty about the measure ±2°C (±3.6°F) o±2% of reading
    Digital zoom 1x ÷ 32x
    Measurement tools (in live mode) none, centre spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
    Area measurement information max, min, AVG
    Measurement corrections emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
    Colour Palettes iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
    Span modes Automatic / Manual / Histogram
    Internal memory storage 3,4 GB
    On-camera report building text notes, voice notes
    Communication modes micro USB, Wi-fi, micro SD, micro HDMI
    Display touch screen
    Battery operation time 4 hours
    Size (LxWxH) 240 x 101 x 110mm

    Read more
