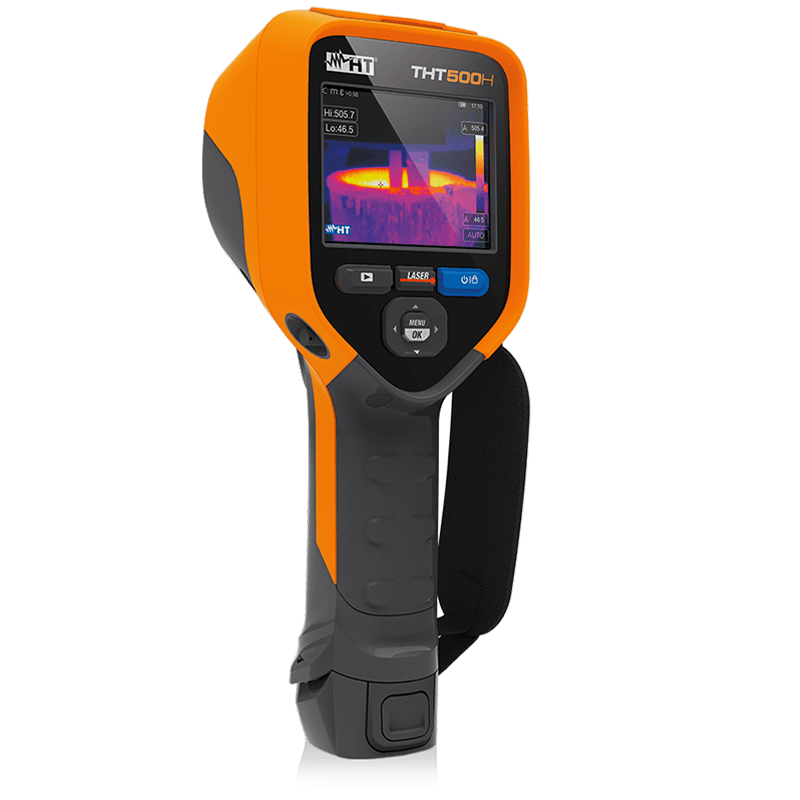

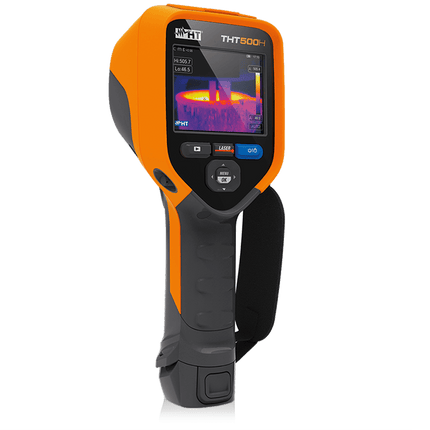

TIS THT500H Advanced High Temperature Thermal Imaging Camera 160 x 120 Pixel

Description

Advanced High Temperature Thermal Imaging Camera 160 x 120 Pixel

TIS THT500H

  • IR Resolution: 160 x 120 pxl
  • Temperature Range: -20° ÷ 1200°C
  • Field of View (FOV): 17.3° x 13°
  • Image Frequency: 50Hz
  • Thermal Sensitivity (NETD): <0.05°C @ 30°C / 50mK
  • Focal Length: f 1.0
  • Lens: 9mm
  • Focus Mode: Manual focus
  • Picture in Picture & AutoFusion Enhancement: Yes
  • Laser Distance Meter: Yes
  • Battery Operation: Up to 4 hours
  • Internal Memory: 3.4 GB
  • Display: High-brightness capacitive touch screen
  • Communication: Wi-Fi, Micro USB, Micro SD, Micro HDMI
  • Size: 240 x 101 x 110mm

The THT500H is a high-performance thermal imaging camera designed for industrial, manufacturing, and high-temperature applications. Equipped with a 160x120pxl IR sensor, the THT500H offers an impressive temperature range from -20°C to 1200°C, making it ideal for extreme heat monitoring and diagnostics. With its 17.3° x 13° field of view, this thermal camera captures crisp, high-resolution thermal images and videos, allowing for detailed inspections in environments like metalworking, power generation, and heavy industry.

Key features include advanced AutoFusion and Picture in Picture functions, providing enhanced image clarity, and a manual focus for precise measurements. The THT500H is further equipped with a laser pointer and integrated laser distance meter to easily measure the distance to the target, ensuring accurate readings even from a distance.

The camera’s high-brightness capacitive touch-screen display makes it user-friendly, and thanks to its ergonomic design, the THT500H is comfortable for extended use. With built-in Wi-Fi, you can quickly download thermograms to your mobile device and generate PDF reports using the HT Pro Camera app for fast sharing and documentation.

Ideal for professionals in industries that demand high-accuracy temperature measurements and detailed thermal analysis, the THT500H is your go-to solution for challenging industrial and manufacturing environments.

.

IR Resolution 160x120 pxl
Temperature range -20° ÷ 650°C
Image frequency
 50Hz
Thermal sensitivity / NETD
 <0.05°C @ 30°C / 50mK
Field of view (FOV) 17.3° x 13°
Focal length f 1.0
Lens 9mm
IFOV 1.89mrad
Focus mode manual
Uncertainty about the measure ±2°C (±3.6°F) o±2% of reading
Digital zoom 1x ÷ 32x
Measurement tools (in live mode) none, centre spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
Area measurement information max, min, AVG
Measurement corrections emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
Colour Palettes iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
Span Mode Automatic / Manual / Histogram
Internal memory storage 3,4 GB
On-camera report building text notes, voice notes
Communication modes micro USB, Wi-fi, micro SD, micro HDMI
Display touch screen
Battery operation time 4 hours
Size (LxWxH) 240 x 101 x 110mm

Read more

TIS THT500H Advanced High Temperature Thermal Imaging Camera 160 x 120 Pixel

Product form

SKU: THT500H

Advanced High Temperature Thermal Imaging Camera 160 x 120 Pixel TIS THT500H IR Resolution: 160 x 120 pxl Temperature Range:... Read more

£5,996.07 ex VAT £7,195.28 inc VAT

Available 1 - 2 working days

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    IR Resolution 160x120 pxl
    Temperature range -20° ÷ 650°C
    Image frequency
    		 50Hz
    Thermal sensitivity / NETD
    		 <0.05°C @ 30°C / 50mK
    Field of view (FOV) 17.3° x 13°
    Focal length f 1.0
    Lens 9mm
    IFOV 1.89mrad
    Focus mode manual
    Uncertainty about the measure ±2°C (±3.6°F) o±2% of reading
    Digital zoom 1x ÷ 32x
    Measurement tools (in live mode) none, centre spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
    Area measurement information max, min, AVG
    Measurement corrections emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
    Colour Palettes iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
    Span Mode Automatic / Manual / Histogram
    Internal memory storage 3,4 GB
    On-camera report building text notes, voice notes
    Communication modes micro USB, Wi-fi, micro SD, micro HDMI
    Display touch screen
    Battery operation time 4 hours
    Size (LxWxH) 240 x 101 x 110mm
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Advanced High Temperature Thermal Imaging Camera 160 x 120 Pixel

    TIS THT500H

    • IR Resolution: 160 x 120 pxl
    • Temperature Range: -20° ÷ 1200°C
    • Field of View (FOV): 17.3° x 13°
    • Image Frequency: 50Hz
    • Thermal Sensitivity (NETD): <0.05°C @ 30°C / 50mK
    • Focal Length: f 1.0
    • Lens: 9mm
    • Focus Mode: Manual focus
    • Picture in Picture & AutoFusion Enhancement: Yes
    • Laser Distance Meter: Yes
    • Battery Operation: Up to 4 hours
    • Internal Memory: 3.4 GB
    • Display: High-brightness capacitive touch screen
    • Communication: Wi-Fi, Micro USB, Micro SD, Micro HDMI
    • Size: 240 x 101 x 110mm

    The THT500H is a high-performance thermal imaging camera designed for industrial, manufacturing, and high-temperature applications. Equipped with a 160x120pxl IR sensor, the THT500H offers an impressive temperature range from -20°C to 1200°C, making it ideal for extreme heat monitoring and diagnostics. With its 17.3° x 13° field of view, this thermal camera captures crisp, high-resolution thermal images and videos, allowing for detailed inspections in environments like metalworking, power generation, and heavy industry.

    Key features include advanced AutoFusion and Picture in Picture functions, providing enhanced image clarity, and a manual focus for precise measurements. The THT500H is further equipped with a laser pointer and integrated laser distance meter to easily measure the distance to the target, ensuring accurate readings even from a distance.

    The camera’s high-brightness capacitive touch-screen display makes it user-friendly, and thanks to its ergonomic design, the THT500H is comfortable for extended use. With built-in Wi-Fi, you can quickly download thermograms to your mobile device and generate PDF reports using the HT Pro Camera app for fast sharing and documentation.

    Ideal for professionals in industries that demand high-accuracy temperature measurements and detailed thermal analysis, the THT500H is your go-to solution for challenging industrial and manufacturing environments.

    .

    IR Resolution 160x120 pxl
    Temperature range -20° ÷ 650°C
    Image frequency
    		 50Hz
    Thermal sensitivity / NETD
    		 <0.05°C @ 30°C / 50mK
    Field of view (FOV) 17.3° x 13°
    Focal length f 1.0
    Lens 9mm
    IFOV 1.89mrad
    Focus mode manual
    Uncertainty about the measure ±2°C (±3.6°F) o±2% of reading
    Digital zoom 1x ÷ 32x
    Measurement tools (in live mode) none, centre spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
    Area measurement information max, min, AVG
    Measurement corrections emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
    Colour Palettes iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
    Span Mode Automatic / Manual / Histogram
    Internal memory storage 3,4 GB
    On-camera report building text notes, voice notes
    Communication modes micro USB, Wi-fi, micro SD, micro HDMI
    Display touch screen
    Battery operation time 4 hours
    Size (LxWxH) 240 x 101 x 110mm

    Read more
