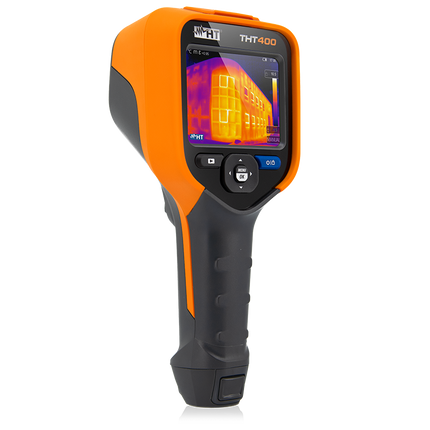

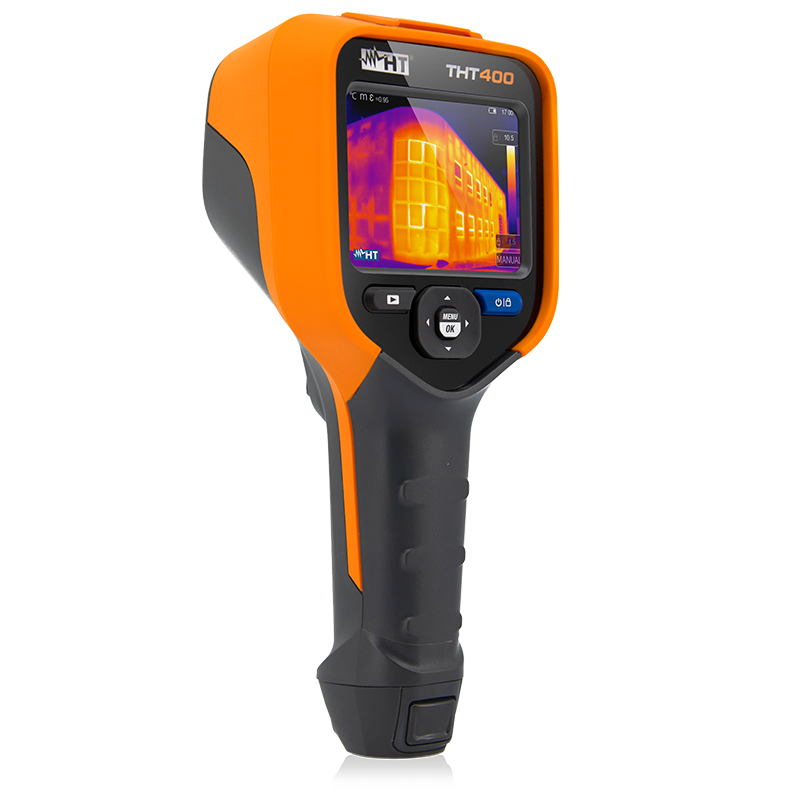

Thermal Imaging Camera 640 x 480 Pixel
TIS THT400
-
Field of View (FOV): 31.9° x 25.7°, providing a wide angle for efficient inspection of larger areas.
-
Thermal Sensitivity: <0.05°C (50mK) sensitivity ensures accurate temperature measurements, even for minor variations.
-
Digital Zoom: A 1x to 32x digital zoom function allows for in-depth inspections of specific areas or points of interest.
-
Built-in 2 MP Camera: The 2 MP, focus-free built-in camera offers clear visual imaging, complementing the thermal data for more comprehensive diagnostic reporting.
-
IR Video Recording: Record high-quality thermal video in real-time for documentation, review, and future analysis.
-
Measurement Tools: Includes various live measurement tools, such as center spot, 3 spots, hot/cold spots, 3 areas, and vertical/horizontal lines, for more precise and efficient thermal analysis.
-
Color Palettes: Choose from a range of color palettes like iron, rainbow, white hot, black hot, and others, to optimize thermal image visualization for better clarity and contrast.
-
Internal Storage: The THT400 includes 3.4 GB of internal memory to store thermal images, videos, and on-camera reports for easy retrieval and sharing.
-
Connectivity: Features USB Type-C, Wi-Fi, and SD card compatibility, allowing for easy data transfer and integration with the HT Pro Camera app for seamless operation.
-
Battery Life: With up to 4 hours of continuous operation, the THT400 is designed for long-lasting performance during extended inspections.
-
Compact Design: At 240 x 101 x 110 mm, the THT400 is lightweight and portable, offering excellent maneuverability during fieldwork.
The THT400 is the ultimate thermal imaging camera for professionals in electrical, mechanical, plumbing, ventilation, and refrigeration systems. Equipped with a high-resolution 640x480pxl IR sensor, the THT400 offers superb image quality and reliable diagnostics. With a temperature range of -20°C to 550°C and an intuitive user interface, this camera is designed to streamline your inspections and improve your workflow.
With its advanced 640x480pxl IR sensor, focus-free functionality, and cutting-edge AutoFusion and Picture in Picture capabilities, the THT400 sets a new standard in thermal imaging. Perfect for professionals who demand top-tier performance, precision, and versatility, the THT400 is the ideal tool for efficient and accurate diagnostics in a variety of applications.
Enhance your diagnostic capabilities with the THT400 – the professional-grade thermal imaging camera designed for accuracy, ease of use, and maximum performance.
.
| IR Resolution |
640x480 pxl |
| Temperature range |
-20° ÷ 550°C |
Image frequency
|
25Hz |
Thermal sensitivity / NETD
|
<0.05°C @ 30°C / 50mK
|
| Field of view (FOV) |
31.9° x 25.7° |
| Focal length |
f 1.0 |
| Lens |
9mm |
| IFOV |
1.89mrad |
| Focus mode |
Focus free |
| Built-in camera |
2 MP, focus free |
| Uncertainty about the measure |
±2°C (±3.6°F) o±2% of reading |
| Digital zoom |
1x ÷ 32x |
| Measurement tools (in live mode) |
none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode |
| Area measurement information |
max, min, AVG |
| Measurement corrections |
emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation |
| Colour Palettes |
iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm |
| Internal memory storage |
3,4 GB |
| On-camera report building |
text annotation |
| Communication modes |
USB type C, Wi-fi, SD card |
| Display |
touch screen |
| Battery operation time |
4 hours |
| Size (LxWxH) |
240 x 101 x 110mm |
