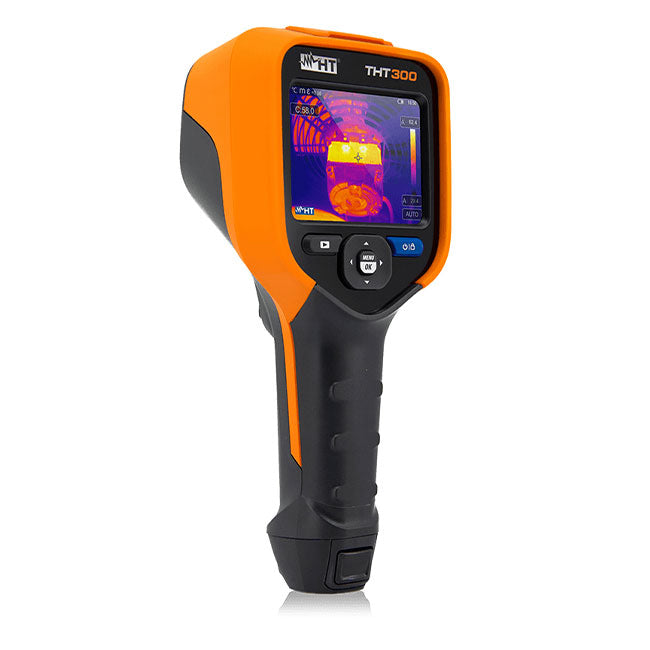

TIS THT300 Thermal Imaging Camera 384 x 288 Pixel

Description

Thermal Imaging Camera 384 x 288 Pixel

TIS THT300

  • Field of View (FOV): 41.5° x 31.1°, perfect for capturing a wide area while maintaining a high level of detail in thermal imaging.
  • Thermal Sensitivity: Achieve exceptional accuracy with <0.05°C (50mK) sensitivity, detecting even the smallest temperature variations.
  • Built-in 2 MP Camera: The integrated 2 MP camera allows for clear visual images to complement your thermal data and enhance diagnostic documentation.
  • Digital Zoom: A 1x to 32x digital zoom enables closer inspection of distant or intricate thermal points.
  • IR Video Recording: Record thermal video in real-time to analyze and document findings on the go.
  • Measurement Tools: Includes various measurement options like center spot, hot/cold spots, 3 areas, horizontal/vertical lines, and screening mode for real-time thermal analysis.
  • Color Palettes: Choose from a wide selection of color palettes, such as iron, rainbow, white hot, black hot, and more, for optimal image clarity and visualization.
  • Internal Storage: 3.4 GB of internal memory for storing thermal images, video recordings, and reports.
  • Connectivity: Supports USB Type-C, Wi-Fi, and SD card, offering flexible file transfer and remote control through the HT Pro Camera app.
  • Battery Life: Operates for up to 4 hours on a single charge, ensuring long-lasting performance in the field.

The THT300 is a state-of-the-art thermal imaging camera designed for professionals working across electrical, mechanical, plumbing, ventilation, and refrigeration systems. Featuring a 384x288pxl IR sensor and a wide temperature range of -20°C to 650°C, the THT300 delivers exceptional image quality and precise diagnostics for a wide range of industrial applications. Its high resolution and versatile features make it ideal for comprehensive inspections and detailed analysis.

With its high-resolution sensor, precise manual focus, and advanced imaging features like AutoFusion and Picture in Picture, the THT300 offers the ideal solution for professionals who demand accuracy, versatility, and portability in their thermal imaging applications.

Upgrade your inspection capabilities and achieve precise diagnostics with the THT300 – your ultimate tool for high-performance thermal imaging.

.

IR Resolution 384x288 pxl
Temperature range -20° ÷ 650°C
Image frequency
 50Hz
Thermal sensitivity / NETD
 <0.05°C @ 30°C / 50mK
Field of view (FOV) 41.5° x 31.1°
Focal length f 1.0
Lens 9mm
IFOV 1.89mrad
Focus mode Manual Focus
Built-in camera 2 MP, focus free
Uncertainty about the measure ±2°C (±3.6°F) o±2% of reading
Digital zoom 1x ÷ 32x
Measurement tools (in live mode) none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
Area measurement information max, min, AVG
Measurement corrections emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
Colour Palettes iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
Internal memory storage 3,4 GB
On-camera report building text annotation
Communication modes USB type C, Wi-fi, SD card
Display touch screen
Battery operation time 4 hours
Size (LxWxH) 240 x 101 x 110mm

Read more

TIS THT300 Thermal Imaging Camera 384 x 288 Pixel

Product form

SKU: THT300

Thermal Imaging Camera 384 x 288 Pixel TIS THT300 Field of View (FOV): 41.5° x 31.1°, perfect for capturing a... Read more

£2,749.17 ex VAT £3,299.00 inc VAT

Available 1 - 2 working days
