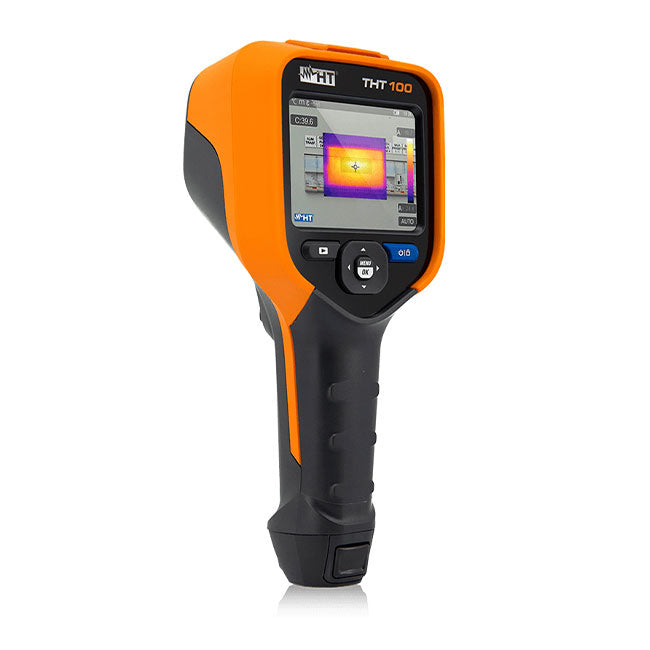

Thermal Imaging Camera 80x80 Pixel
TIS THT100
-
Field of View (FOV): 21° x 21°, perfect for focused thermal imaging and targeted inspections.
-
Thermal Sensitivity: With a thermal sensitivity of <0.05°C (50mK), the THT100 provides precise temperature measurements for critical fault detection.
-
Built-in 2 MP Camera: Capture both thermal and standard visual images for comprehensive diagnostics.
-
Digital Zoom: 1x to 32x digital zoom for detailed inspection of distant or intricate areas.
-
IR Video Recording: Record thermal video in real-time for in-depth analysis and documentation of your findings.
-
Measurement Tools: Real-time measurement tools include center spot, 3 spots, hot/cold spots, 3 areas, and horizontal/vertical lines for accurate thermal analysis.
-
Colour Palettes: Choose from a wide range of palettes (e.g., iron, rainbow, white hot, black hot, and more) for customized thermal imaging.
-
Internal Storage: With 3.4 GB of internal memory, you can store thermal images, videos, and reports for future reference and reporting.
-
Wi-Fi & USB Type-C: The THT100 supports Wi-Fi and USB Type-C communication for seamless file transfer and remote control via the HT Pro Camera app.
-
Battery Life: The camera operates for up to 4 hours on a single charge, providing extended use in the field.
The THT100 is a high-performance thermal camera designed for professionals in electrical, mechanical, plumbing, ventilation, and refrigeration systems. With an impressive 80x80pxl IR sensor and a wide temperature range of -20°C to 650°C, this camera produces high-quality thermal images and videos, making it the ideal tool for precise diagnostics and inspections.
The THT100 is an advanced thermal imaging solution that combines high performance, user-friendly design, and powerful features. Whether you're troubleshooting electrical, mechanical, or HVAC systems, this camera provides everything you need for quick, accurate diagnostics and reporting.
Upgrade your diagnostic capabilities with the THT100 – the ultimate tool for precision thermal analysis.
.
| IR Resolution |
80 x 80 pxl |
| Temperature range |
-20° ÷ 650°C |
Image frequency
|
50Hz |
Thermal sensitivity / NETD
|
<0.05°C @ 30°C / 50mK
|
| Field of view (FOV) |
21° x 21° |
| Focal length |
f 1.0 |
| Lens |
7.5mm |
| IFOV |
4.53mrad |
| Focus mode |
focus free |
| Built-in camera |
2 MP, focus free |
| Uncertainty about the measure |
±2°C (±3.6°F) o±2% of reading |
| Digital zoom |
1x ÷ 32x |
| Measurement tools (in live mode) |
none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode |
| Area measurement information |
max, min, AVG |
| Measurement corrections |
emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation |
| Colour Palettes |
iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm |
| Span modes |
Automatic / Manual / Histogram |
| Internal memory storage |
3,4 GB |
| On-camera report building |
text annotation |
| Communication modes |
USB type C, Wi-fi, SD card |
| Display |
touch screen |
| Battery operation time |
4 hours |
| Size (LxWxH) |
240 x 101 x 110mm |
