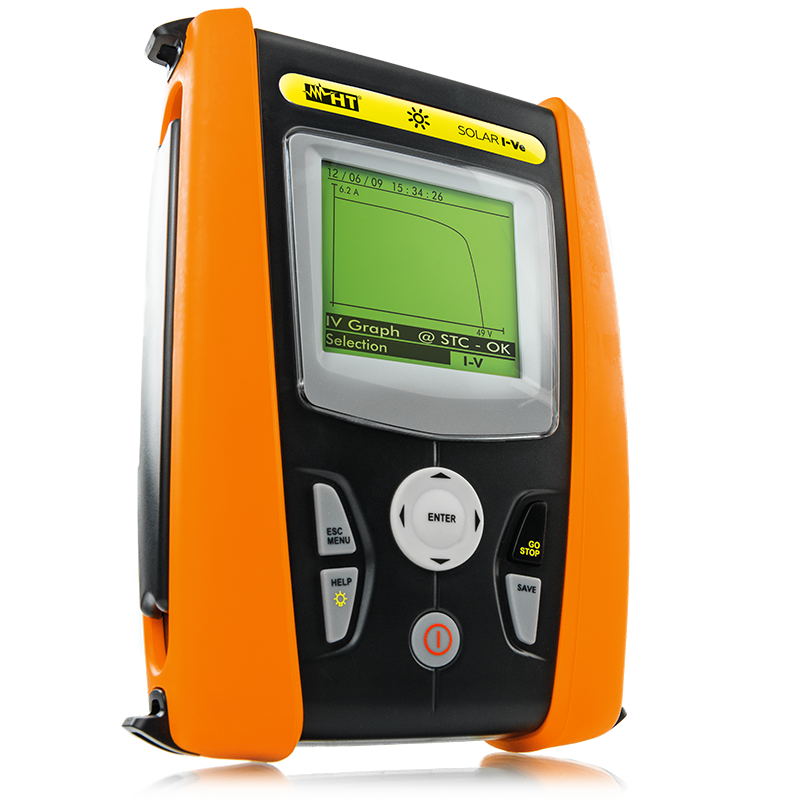

TIS SOLAR I-Ve Multifunction I-V Curve Tracer compatible with HTANALYSIS™
- TIS

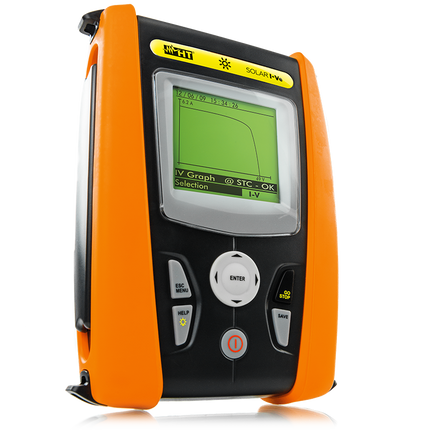

TIS SOLAR I-Ve Multifunction I-V Curve Tracer compatible with HTANALYSIS™
- TIS
SKU: SOLARI-VE
Multifunction I-V Curve Tracer compatible with HTANALYSIS™ TIS SOLAR I-Ve High-precision I-V curve tracing – Measures up to 1500V/10A or... Read more
£5,848.30 ex VAT £7,017.96 inc VAT
-
Guaranteed secure & safe checkout.
- Free shipping on all orders above £100 + vat
Specification
|
I-V curve tracing of PV modules and strings |
128 points |
| Measuring range of I-V curve / VOC-ISC |
1500V/10A - 1000V/15A |
| Quick IVCK test for measuring Voc and Isc on PV modules and strings |
VOC 1500V / ISC 15A |
| Single-phase/three-phase photvoltaic systems’ testing | 1MPPT (3MPPT with MPP300) |
| DMM (Input Voltages) | Yes |
| Use of remote unit SOLAR-02 with USB \ RF connection | RF |
| Active P, Reactive Q, Apparent S Power/Energy |
Only active P |
| Max number of simultaneously selectable parameters | 9 |
| Recording with selectable integration period | 5s-60m |
| Indicative memory duration (in days @ PI=10min @ max number of parameters) | 8 |
| Measuring range for photovoltaic testing | 1500VDC / 265VAC (Single-Phase) |
| Measurement category | CAT III 300V |
| Internal memory | 249 curves I-V 8 days@ PI=10 min |
| Integrated WiFi connection and compatibility with HTANALYSIS App | For data download onto the PC\app |
| Custom management of internal PV module database | 30 internal, 30.000 on software\app |
| Size (LxWx H) (mm) | 235x165x75 |
| Weight in grams (batteries included) | 1200 |
