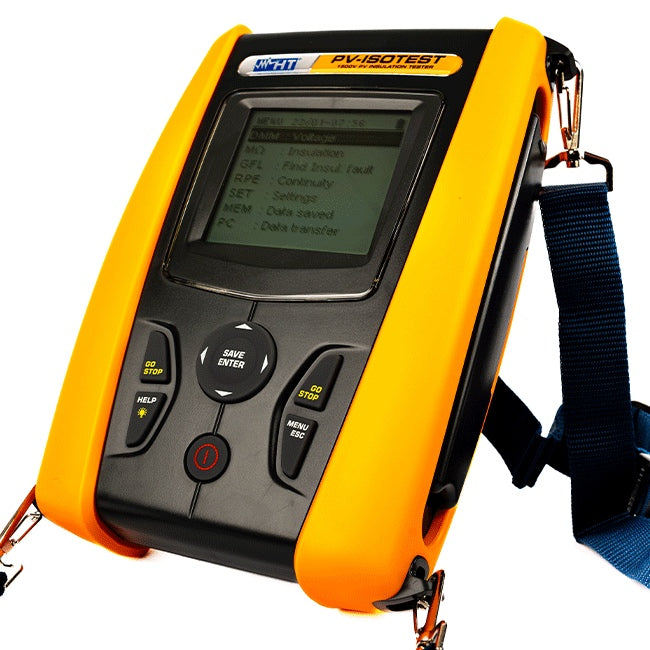

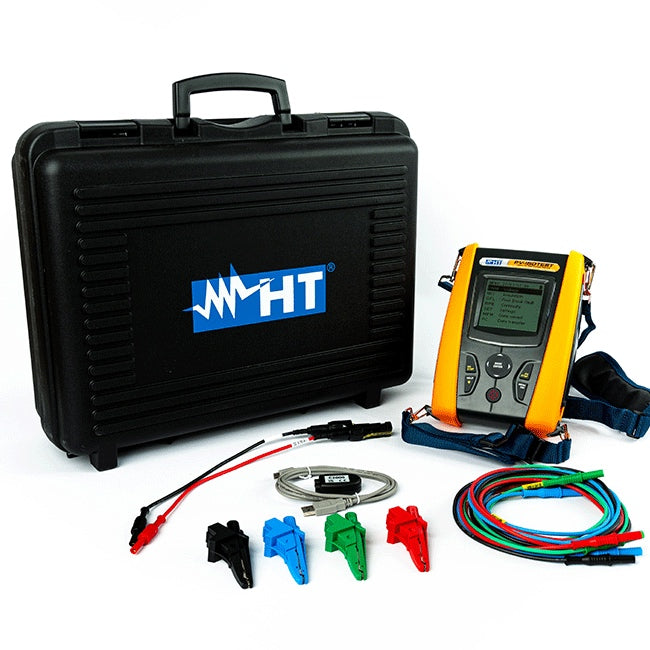

TIS PV-ISOTEST Solar PV Multifunction Performance Tester

Description

TIS Solar PV Multifunction Performance Tester

PV-ISOTEST

  • Measurement category : CAT III 1500V DC / CAT III 1000V AC
  • AC TRMS voltage measurements 3 ÷ 1000V
  • DC voltage measurements 3 ÷ 1500V
  • Insulation resistance 250, 500, 1000, 1500V
  • GFL function to locate the fault position in the string
  • Measurement of polarization index P.I
  • Dielectric absorption ratio D.A.R
  • Continuity of protective conductors with 200mA
  • Size LxWxH (mm) 235mm x 165mm x 75mm
  • Weight 1.2kg

Get the TIS PV-ISOTEST Solar PV Multifunction Performance Tester for accurate and reliable measurements. With CAT III 1500V DC / CAT III 1000V AC measurement category, this tester ensures safety and precision. Measure voltage up to 1000V AC and 1500V DC, insulation resistance up to 1500V, and test protective conductors with 200mA for peace of mind. Includes GFL, P.I, and D.A.R functions to locate faults, as well as a compact and lightweight design for easy portability.


.



Battery Size
 AA
Brand Test Instrument Solutions
Dimensions 235mm(h) x 165mm(w) x 75mm(d)
Display Type
 LCD
Guarantee 1 Year
Measurement Category Cat III 1500V DC / Cat III 1000V AC

Read more

TIS PV-ISOTEST Solar PV Multifunction Performance Tester

Product form

SKU: PV-ISOTEST

TIS Solar PV Multifunction Performance Tester PV-ISOTEST Measurement category : CAT III 1500V DC / CAT III 1000V AC AC... Read more

£1,249.38 ex VAT £1,499.26 inc VAT

Available 1 - 2 working days

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification



    Battery Size
    		 AA
    Brand Test Instrument Solutions
    Dimensions 235mm(h) x 165mm(w) x 75mm(d)
    Display Type
    		 LCD
    Guarantee 1 Year
    Measurement Category Cat III 1500V DC / Cat III 1000V AC
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    TIS Solar PV Multifunction Performance Tester

    PV-ISOTEST

    • Measurement category : CAT III 1500V DC / CAT III 1000V AC
    • AC TRMS voltage measurements 3 ÷ 1000V
    • DC voltage measurements 3 ÷ 1500V
    • Insulation resistance 250, 500, 1000, 1500V
    • GFL function to locate the fault position in the string
    • Measurement of polarization index P.I
    • Dielectric absorption ratio D.A.R
    • Continuity of protective conductors with 200mA
    • Size LxWxH (mm) 235mm x 165mm x 75mm
    • Weight 1.2kg

    Get the TIS PV-ISOTEST Solar PV Multifunction Performance Tester for accurate and reliable measurements. With CAT III 1500V DC / CAT III 1000V AC measurement category, this tester ensures safety and precision. Measure voltage up to 1000V AC and 1500V DC, insulation resistance up to 1500V, and test protective conductors with 200mA for peace of mind. Includes GFL, P.I, and D.A.R functions to locate faults, as well as a compact and lightweight design for easy portability.


    .



    Battery Size
    		 AA
    Brand Test Instrument Solutions
    Dimensions 235mm(h) x 165mm(w) x 75mm(d)
    Display Type
    		 LCD
    Guarantee 1 Year
    Measurement Category Cat III 1500V DC / Cat III 1000V AC

    Read more
