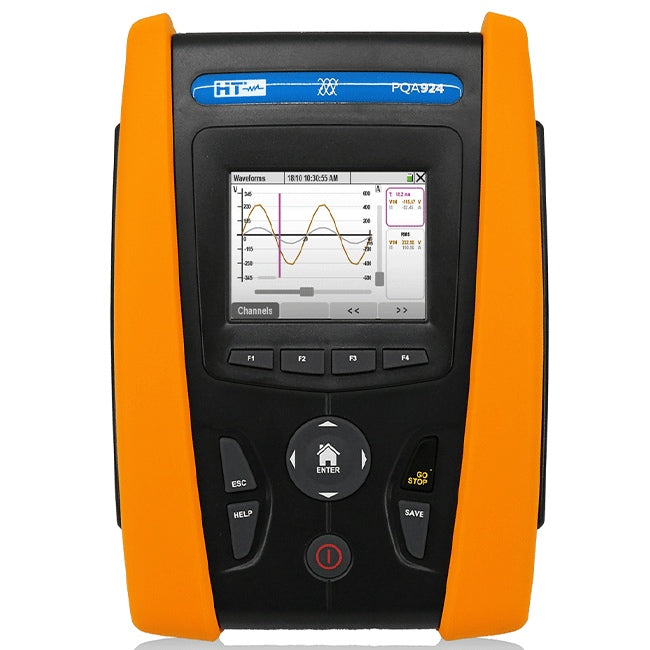

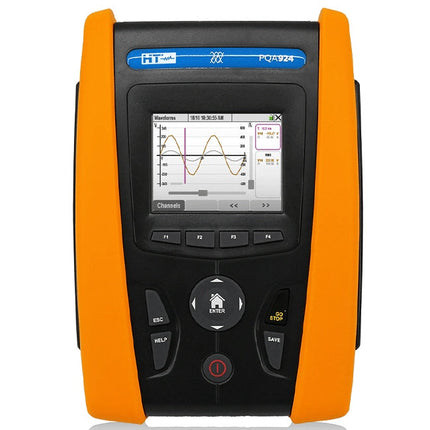

TIS PQA924 Professional Class S Network Quality Analyzer
- TIS
TIS PQA924 Professional Class S Network Quality Analyzer
- TIS
SKU: PQA924
Professional Class S Network Quality Analyzer TIS PQA924 Can record up to 3177 channels and voltage/currents events simultaneously Fast transients... Read more
£3,806.84 ex VAT £4,568.21 inc VAT
-
Guaranteed secure & safe checkout.
- Free shipping on all orders above £100 + vat
Specification
| Brand | Test Instrument Solutions |
| Measurement category | CAT IV 600V~, CAT III 1000V~ max 1000V between inputs |
| Rated reference voltage (Udin): | 100 ÷ 690V |
| Selectable electrical systems |
• Single phase 2-wire+PE • Single-phase 3-wire (two-phase) • Three-phase, 3-wire ARON connection • Three-phase 4-wire |
| Main electrical parameters considered: | Voltages L-N, L-L, L-PE (TRMS) • Phase and Neutral Currents (TRMS) • Active, Reactive, Apparent power (4 quadrants) • Cosphi and Power Factor (4 quadrants) • Active, Reactive, Apparent Energies (4 quadrants) |
| Power supply: |
• External power supply A0080 (CAT IV 300, CAT III 600V, 100..415V/15VDC, 50/60Hz) • Internal: (recording time > 6hhours) o 6 x1.5V AA type alkaline batteries o 6 x1.2V rechargeable batteries NiMH type AA |
| IP Rating | IP40 |
