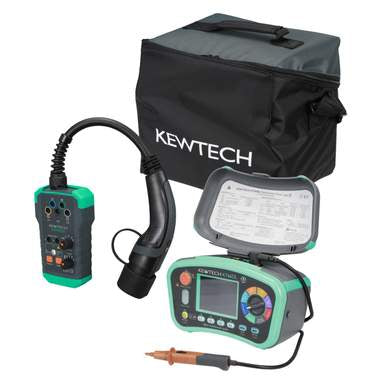

Kewtech KT66EV Multifunction Installation Tester with EV Charging Test Adapter

Description

KT66EV Multifunction Installation Tester with EV Charging Test Adapter

Kewtech KT66EV

  • Continuity tests at 200mA or 15mA with selectable buzzer
  • Insulation resistance tests 100, 250, 500 and 1000V with auto discharge voltage
  • Earth resistance test 2 and 3 wires options
  • High current and anti-trip technology loop test [with 2 and 3 wire] for no trip loop L-PE testing on all RCDs
  • 55V low and high current loop test of 110V CTE circuits
  • RCD test for type AC, A, F, B [general or selective], EV and variable RCDs, single, auto, ramp and contact voltage options
  • Supplied with KEWEVSE EV charging point adapter
  • Phase rotation test
  • TRMS voltage measurements from 2 - 600V at mains frequency
  • SPD test, for SPD that use varistors
  • PAT function for insulation and protective conductor resistance tests
  • Advanced memory assigns type of test, circuit number and DB to test results

The Kewtech KT66EV is a versatile multifunction installation tester that is equipped with a specialized EV charging test adapter for added convenience. With features such as a selectable buzzer for continuity tests, auto discharge voltage for insulation resistance tests, and anti-trip technology for loop tests, this tester is a reliable tool for professionals. It also has a phase rotation test, TRMS voltage measurements, and an SPD test for surge protection devices.


.



3 Phase Rotation Yes
Ac Voltage Measurement 600V AC
Batteries Included Yes
Battery Level Indicator Yes
Battery Size AA
Battery Type Alkaline
Continuity Check Yes
Continuity Range 0.01 Ω - 2000 Ω
Depth 136mm
Dimensions (H)114 mm x (W)235 mm x (D)136 mm
Earth Electrode Test Yes
Guarantee 1 Year
Height 114mm
Insulation Resistance Measuring Range 0.1 MΩ - 2000 MΩ
Insulation Test Voltage 100V / 250V / 500V / 1000V
Loop Impedance Range 0.01 Ω - 2000 Ω
Number of Batteries 8
Packaging Types Each
Product Range Multifunction Testers
Rcd Settings ½ / x1 / x5 @ 0° and 180° / Type AC / A / F / B / Auto and Ramp Tests
Rcd Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
Resistance Measurement 0.01 Ω - 2000 Ω
Safety Range CAT III 600V CAT IV 300V
Standards EC61557-1,2,3,4,5,6,7,10
Supplied With ACC064SP G7 Test Probe with Remote Test Button, ACC065 G7 Test Lead Set, KEWEVSE EV Charging Point Adapter, Earth Spike Kit, Batteries, Instruction Manual, Calibration Certificate, KAMP 12 Mains Lead, Software, USB Lead, Test Lead Pouch and Soft Carry Case
Weight 1.35kg
Width 235mm

Read more

Kewtech KT66EV Multifunction Installation Tester with EV Charging Test Adapter

Product form

SKU: KT66EV

KT66EV Multifunction Installation Tester with EV Charging Test Adapter Kewtech KT66EV Continuity tests at 200mA or 15mA with selectable buzzer... Read more

£1,383.26 ex VAT £1,659.91 inc VAT

Available 1-3 working days

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification



    3 Phase Rotation Yes
    Ac Voltage Measurement 600V AC
    Batteries Included Yes
    Battery Level Indicator Yes
    Battery Size AA
    Battery Type Alkaline
    Continuity Check Yes
    Continuity Range 0.01 Ω - 2000 Ω
    Depth 136mm
    Dimensions (H)114 mm x (W)235 mm x (D)136 mm
    Earth Electrode Test Yes
    Guarantee 1 Year
    Height 114mm
    Insulation Resistance Measuring Range 0.1 MΩ - 2000 MΩ
    Insulation Test Voltage 100V / 250V / 500V / 1000V
    Loop Impedance Range 0.01 Ω - 2000 Ω
    Number of Batteries 8
    Packaging Types Each
    Product Range Multifunction Testers
    Rcd Settings ½ / x1 / x5 @ 0° and 180° / Type AC / A / F / B / Auto and Ramp Tests
    Rcd Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
    Resistance Measurement 0.01 Ω - 2000 Ω
    Safety Range CAT III 600V CAT IV 300V
    Standards EC61557-1,2,3,4,5,6,7,10
    Supplied With ACC064SP G7 Test Probe with Remote Test Button, ACC065 G7 Test Lead Set, KEWEVSE EV Charging Point Adapter, Earth Spike Kit, Batteries, Instruction Manual, Calibration Certificate, KAMP 12 Mains Lead, Software, USB Lead, Test Lead Pouch and Soft Carry Case
    Weight 1.35kg
    Width 235mm
      Downloads

    Description

    KT66EV Multifunction Installation Tester with EV Charging Test Adapter

    Kewtech KT66EV

    • Continuity tests at 200mA or 15mA with selectable buzzer
    • Insulation resistance tests 100, 250, 500 and 1000V with auto discharge voltage
    • Earth resistance test 2 and 3 wires options
    • High current and anti-trip technology loop test [with 2 and 3 wire] for no trip loop L-PE testing on all RCDs
    • 55V low and high current loop test of 110V CTE circuits
    • RCD test for type AC, A, F, B [general or selective], EV and variable RCDs, single, auto, ramp and contact voltage options
    • Supplied with KEWEVSE EV charging point adapter
    • Phase rotation test
    • TRMS voltage measurements from 2 - 600V at mains frequency
    • SPD test, for SPD that use varistors
    • PAT function for insulation and protective conductor resistance tests
    • Advanced memory assigns type of test, circuit number and DB to test results

    The Kewtech KT66EV is a versatile multifunction installation tester that is equipped with a specialized EV charging test adapter for added convenience. With features such as a selectable buzzer for continuity tests, auto discharge voltage for insulation resistance tests, and anti-trip technology for loop tests, this tester is a reliable tool for professionals. It also has a phase rotation test, TRMS voltage measurements, and an SPD test for surge protection devices.


    .



    3 Phase Rotation Yes
    Ac Voltage Measurement 600V AC
    Batteries Included Yes
    Battery Level Indicator Yes
    Battery Size AA
    Battery Type Alkaline
    Continuity Check Yes
    Continuity Range 0.01 Ω - 2000 Ω
    Depth 136mm
    Dimensions (H)114 mm x (W)235 mm x (D)136 mm
    Earth Electrode Test Yes
    Guarantee 1 Year
    Height 114mm
    Insulation Resistance Measuring Range 0.1 MΩ - 2000 MΩ
    Insulation Test Voltage 100V / 250V / 500V / 1000V
    Loop Impedance Range 0.01 Ω - 2000 Ω
    Number of Batteries 8
    Packaging Types Each
    Product Range Multifunction Testers
    Rcd Settings ½ / x1 / x5 @ 0° and 180° / Type AC / A / F / B / Auto and Ramp Tests
    Rcd Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
    Resistance Measurement 0.01 Ω - 2000 Ω
    Safety Range CAT III 600V CAT IV 300V
    Standards EC61557-1,2,3,4,5,6,7,10
    Supplied With ACC064SP G7 Test Probe with Remote Test Button, ACC065 G7 Test Lead Set, KEWEVSE EV Charging Point Adapter, Earth Spike Kit, Batteries, Instruction Manual, Calibration Certificate, KAMP 12 Mains Lead, Software, USB Lead, Test Lead Pouch and Soft Carry Case
    Weight 1.35kg
    Width 235mm
