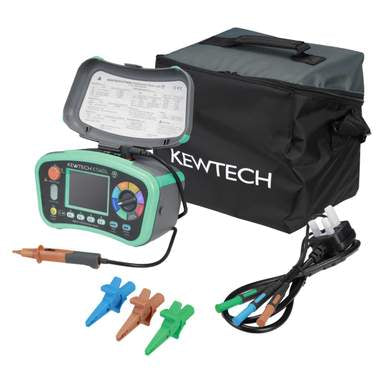

KT66DL Multifunction Installation Tester with EVSE Facility
Kewtech KT66DL
- Continuity tests at 200mA or 15mA with selectable buzzer
- Insulation resistance tests 100, 250, 500 and 1000V with auto discharge voltage
- Earth resistance test 2 and 3 wires options
- High current and anti-trip technology loop test [with 2 and 3 wire] for no trip loop L-PE testing on all RCDs
- 55V low and high current loop test of 110V CTE circuits
- RCD test for type AC, A, F, B [general or selective], EV and variable RCDs, single, auto, ramp and contact voltage options
- Phase rotation test
- TRMS voltage measurements from 2 - 600V at mains frequency
- SPD test, for SPD that use varistors
- PAT function for insulation and protective conductor resistance tests
- Advanced memory assigns type of test, circuit number and DB to test results
The Kewtech KT66DL Multifunction Installation Tester with EVSE Facility is a highly advanced device designed for professional electricians and contractors. This innovative device is designed to perform a range of testing functions, including insulation, continuity, and loop impedance testing, making it an essential tool for anyone working with electrical systems.
The Kewtech KT66DL Multifunction Installation Tester with EVSE Facility also features a unique EVSE (Electric Vehicle Supply Equipment) testing facility, which allows electricians and contractors to test EVSE charging points for safety and compliance with industry standards. This makes it the ideal tool for anyone working with electric vehicles, ensuring that they are operating safely and efficiently.
With its advanced measurement capabilities, the Kewtech KT66DL Multifunction Installation Tester with EVSE Facility is built to withstand the demands of any job site. Its rugged design provides reliable performance in even the toughest conditions, while its easy-to-use interface and large LCD display make it simple to take precise measurements.
The Kewtech KT66DL Multifunction Installation Tester with EVSE Facility is an essential addition to any electrician's toolkit. By using this innovative device, you can quickly and accurately test your electrical installations and ensure that they are safe and compliant with industry standards. Don't wait to get started – order your Kewtech KT66DL Multifunction Installation Tester with EVSE Facility today and experience the peace of mind that comes with knowing your electrical systems are in top condition.
.
| 3 Phase Rotation |
Yes |
| Ac Voltage Measurement |
600V AC |
| Batteries Included |
Yes |
| Battery Level Indicator |
Yes |
| Battery Size |
AA |
| Battery Type |
Alkaline |
| Continuity Check |
Yes |
| Continuity Range |
0.01 Ω - 2000 Ω |
| Depth |
136mm |
| Dimensions |
(H)114 mm x (W)235 mm x (D)136 mm |
| Guarantee |
1 Year |
| Height |
114mm |
| Insulation Resistance Measuring Range |
0.1 MΩ - 2000 MΩ |
| Insulation Test Voltage |
100V / 250V / 500V / 1000V |
| Loop Impedance Range |
0.01 Ω - 2000 Ω |
| Number of Batteries |
8 |
| Packaging Types |
Each |
| Product Range |
Multifunction Testers |
| Rcd Settings |
½ / x1 / x5 @ 0° and 180° / Type AC / A / F / B / Auto and Ramp Tests |
| Rcd Test Range |
10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA |
| Resistance Measurement |
0.01 Ω - 2000 Ω |
| Safety Range |
CAT III 600V CAT IV 300V |
| Standards |
EC61557-1,2,3,4,5,6,7,10 |
| Supplied With |
ACC064SP G7 Test Probe with Remote Test Button, ACC065 G7 Test Lead Set, Batteries, Instruction Manual, Calibration Certificate, KAMP 12 Mains Lead, Software, USB Lead, Test Lead Pouch and Soft Carry Case |
| Weight |
1.3kg |
| Width |
235mm |
