Kewtech KT65DL 8-in-1 Multifunction Installation Tester

Description

8-in-1 Multifunction Installation Tester

Kewtech KT65DL

  • Easy to use and straight forward interface with single rotary dial and large screen display
  • Constant live voltage detection protects when dead testing
  • No Bangs – continuous live monitoring means no blown fuses or PCBs
  • Magnetic base for hands free attachment to metal cabinets
  • Electronic 'hands free' lock down test button
  • IP54 even when the leads are not plugged in
  • End of line calibration certificate

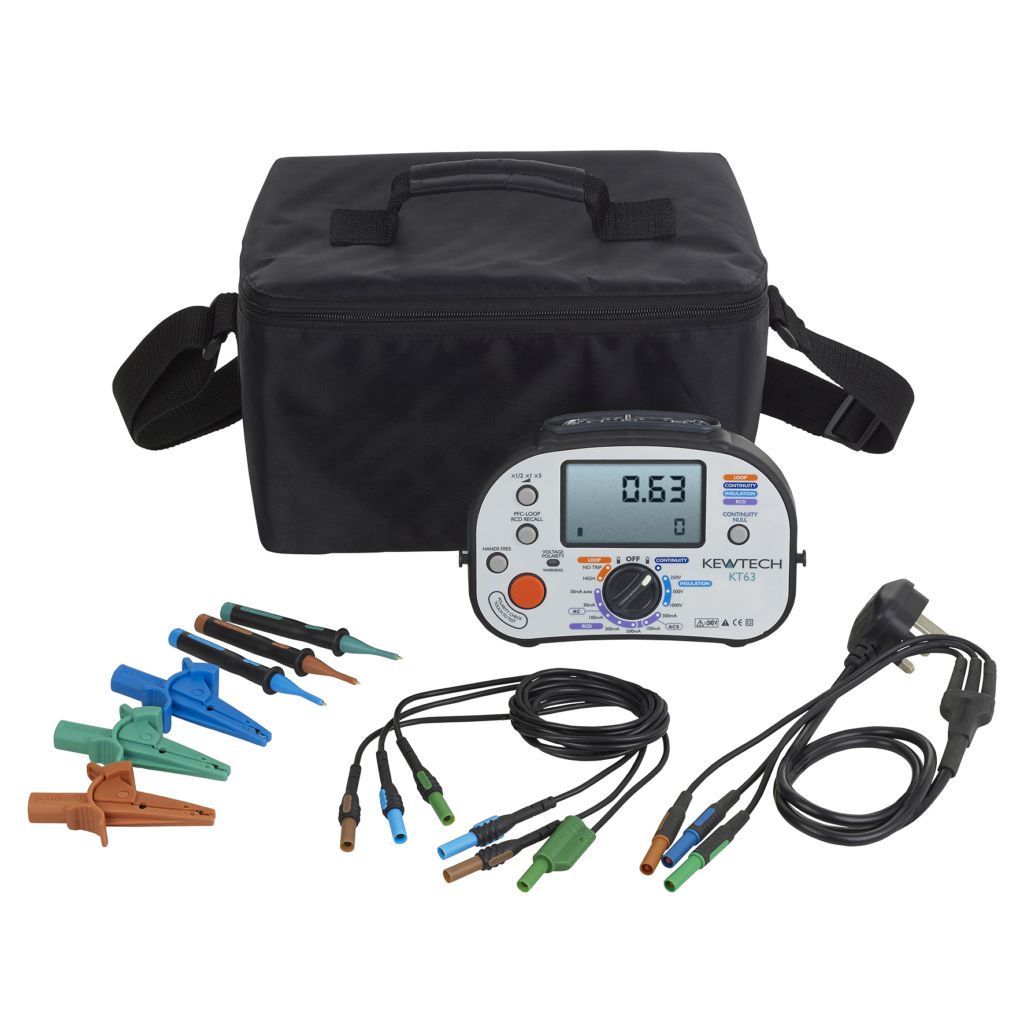

  • Comes complete with soft carry case, mains lead, distribution board leads and padded neck strap
  • Continuity - switchable buzzer and auto null
  • Insulation - 250, 500 & 1000V with voltage warning LED and auto discharge
  • Loop - ATT (low current), high current 0.01 ohm resolution
  • Anti Trip Technology loop for full no trip Loop testing of RCDs with low susceptibility of RCD uplift and noise interference
  • PSC/PFC - clear indication of what is being tested and displayed with loop reading
  • RCD - Type AC, A, ACS, AS, auto & ramp
  • Type AC RCDs - Tests 10mA, 30mA, 100mA, 300mA & 500mA
  • Type A RCDs - Tests 10mA, 30mA, 100mA & 300mA
  • RCD auto test mode for 30 mA RCDs
  • RCD ramp test function
  • Test leads auto-null for continuity mode
  • Polarity check
  • Instant correct wiring status check

The Kewtech KT65DL 8-in-1 Multifunction Installation Tester is an easy-to-use and straightforward tool with a single rotary dial and large screen display. It has Constant Live Voltage Detection to protect when dead testing, Electronic 'hands free' lock down test button, IP54 rating even when the leads are not plugged in, and a magnetic base for hands free attachment to metal cabinets. It also features Anti Trip Technology loop for full no trip Loop testing of RCDs with low s. A complete package with soft carry case, mains lead, distribution board leads, and padded neck strap. Get precision testing accuracy with an end of line calibration certificate.


.

3 Phase Rotation Yes
Ac Voltage Measurement 500V AC
Batteries Included Yes
Battery Level Indicator Yes
Battery Size AA
Battery Type Alkaline
Colour Black/Grey
Continuity Check Yes
Continuity Range 0.01 Ω - 2000 Ω
Display Type LCD
Earth Electrode Test Yes
Guarantee 1 Year
IP Rating IP54
Insulation Resistance Measuring Range 0.1 MΩ - 2000 MΩ
Insulation Test Voltage 250V / 500V / 1000V
Loop Impedance Range 0.01 Ω - 2000 Ω
Number of Batteries 8
Packaging Types Each
Rcd Settings ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
Rcd Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA
Safety Range CAT III 500V, CAT IV 300V
Standards EN61010
Supplied With ACC064SP G7 Test Lead with Remote Test Button, ACC065 G7 Test Lead Set, Batteries, Instruction Manual, Calibration Certificate, KAMP 12 Mains Lead, Test Lead Pouch and Soft Carry Case

Read more

Kewtech KT65DL 8-in-1 Multifunction Installation Tester

Product form

SKU: KT65DL

8-in-1 Multifunction Installation Tester Kewtech KT65DL Easy to use and straight forward interface with single rotary dial and large screen... Read more

Free pickup in our shop(s)

£897.95 ex VAT £1,077.54 inc VAT

Next day delivery

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    3 Phase Rotation Yes
    Ac Voltage Measurement 500V AC
    Batteries Included Yes
    Battery Level Indicator Yes
    Battery Size AA
    Battery Type Alkaline
    Colour Black/Grey
    Continuity Check Yes
    Continuity Range 0.01 Ω - 2000 Ω
    Display Type LCD
    Earth Electrode Test Yes
    Guarantee 1 Year
    IP Rating IP54
    Insulation Resistance Measuring Range 0.1 MΩ - 2000 MΩ
    Insulation Test Voltage 250V / 500V / 1000V
    Loop Impedance Range 0.01 Ω - 2000 Ω
    Number of Batteries 8
    Packaging Types Each
    Rcd Settings ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
    Rcd Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA
    Safety Range CAT III 500V, CAT IV 300V
    Standards EN61010
    Supplied With ACC064SP G7 Test Lead with Remote Test Button, ACC065 G7 Test Lead Set, Batteries, Instruction Manual, Calibration Certificate, KAMP 12 Mains Lead, Test Lead Pouch and Soft Carry Case
      Downloads

    Description

    8-in-1 Multifunction Installation Tester

    Kewtech KT65DL

    • Easy to use and straight forward interface with single rotary dial and large screen display
    • Constant live voltage detection protects when dead testing
    • No Bangs – continuous live monitoring means no blown fuses or PCBs
    • Magnetic base for hands free attachment to metal cabinets
    • Electronic 'hands free' lock down test button
    • IP54 even when the leads are not plugged in
    • End of line calibration certificate
    • Comes complete with soft carry case, mains lead, distribution board leads and padded neck strap
    • Continuity - switchable buzzer and auto null
    • Insulation - 250, 500 & 1000V with voltage warning LED and auto discharge
    • Loop - ATT (low current), high current 0.01 ohm resolution
    • Anti Trip Technology loop for full no trip Loop testing of RCDs with low susceptibility of RCD uplift and noise interference
    • PSC/PFC - clear indication of what is being tested and displayed with loop reading
    • RCD - Type AC, A, ACS, AS, auto & ramp
    • Type AC RCDs - Tests 10mA, 30mA, 100mA, 300mA & 500mA
    • Type A RCDs - Tests 10mA, 30mA, 100mA & 300mA
    • RCD auto test mode for 30 mA RCDs
    • RCD ramp test function
    • Test leads auto-null for continuity mode
    • Polarity check
    • Instant correct wiring status check

    The Kewtech KT65DL 8-in-1 Multifunction Installation Tester is an easy-to-use and straightforward tool with a single rotary dial and large screen display. It has Constant Live Voltage Detection to protect when dead testing, Electronic 'hands free' lock down test button, IP54 rating even when the leads are not plugged in, and a magnetic base for hands free attachment to metal cabinets. It also features Anti Trip Technology loop for full no trip Loop testing of RCDs with low s. A complete package with soft carry case, mains lead, distribution board leads, and padded neck strap. Get precision testing accuracy with an end of line calibration certificate.


    .

    3 Phase Rotation Yes
    Ac Voltage Measurement 500V AC
    Batteries Included Yes
    Battery Level Indicator Yes
    Battery Size AA
    Battery Type Alkaline
    Colour Black/Grey
    Continuity Check Yes
    Continuity Range 0.01 Ω - 2000 Ω
    Display Type LCD
    Earth Electrode Test Yes
    Guarantee 1 Year
    IP Rating IP54
    Insulation Resistance Measuring Range 0.1 MΩ - 2000 MΩ
    Insulation Test Voltage 250V / 500V / 1000V
    Loop Impedance Range 0.01 Ω - 2000 Ω
    Number of Batteries 8
    Packaging Types Each
    Rcd Settings ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
    Rcd Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA
    Safety Range CAT III 500V, CAT IV 300V
    Standards EN61010
    Supplied With ACC064SP G7 Test Lead with Remote Test Button, ACC065 G7 Test Lead Set, Batteries, Instruction Manual, Calibration Certificate, KAMP 12 Mains Lead, Test Lead Pouch and Soft Carry Case
