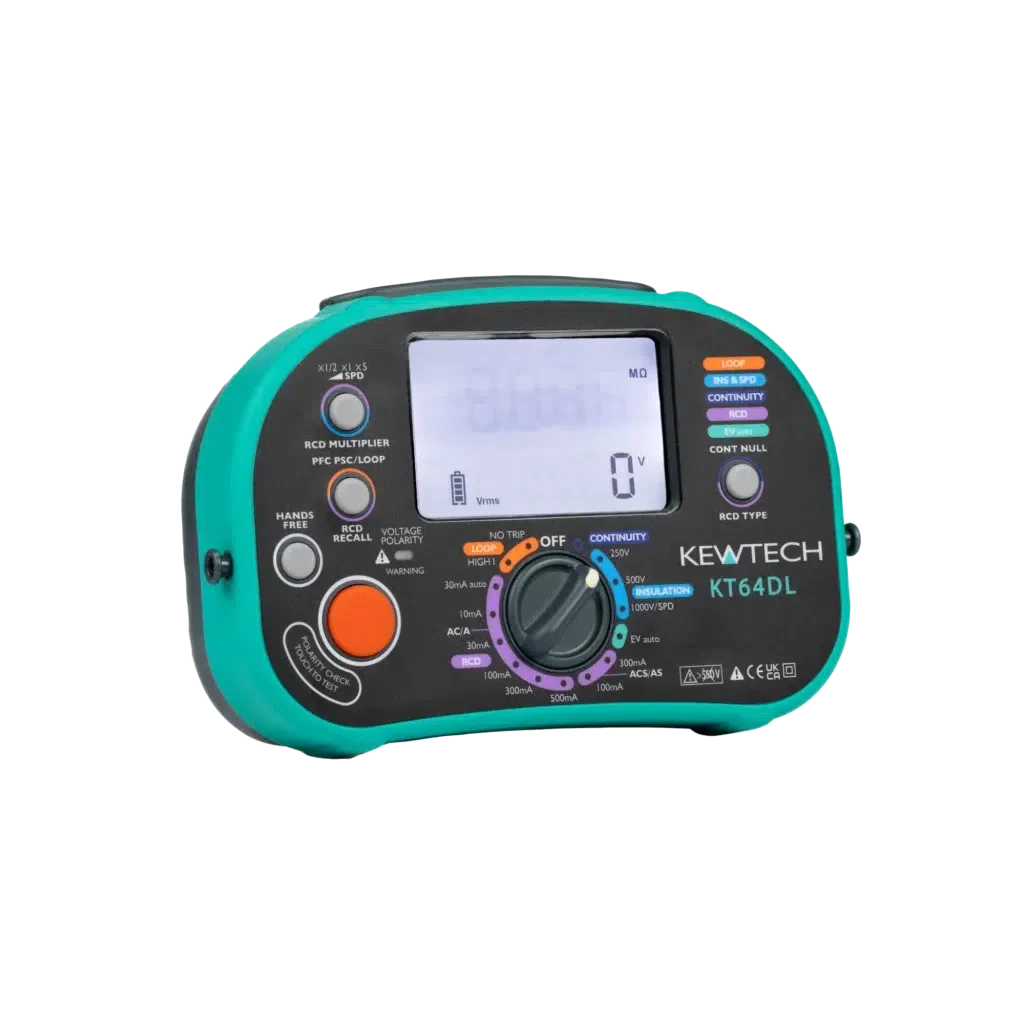

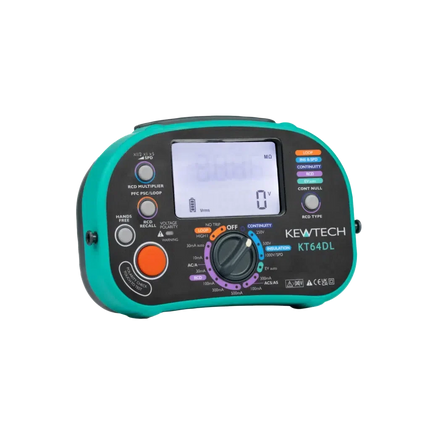

Kewtech KT64DL 6-in-1 Compact Multifunction Tester with EV & SPD testing

Description

6-in-1 Compact Multifunction Tester

Kewtech KT64DL

  • Continuity - switchable buzzer and auto null
  • Insulation - 250, 500 & 1000V with voltage warning LED and auto discharge
  • Loop - ATT (low current), high current 0.01 ohm resolution
  • Anti Trip Technology loop for full no trip Loop testing of RCDs with low susceptibility of RCD uplift and noise interference
  • PSC/PFC - clear indication of what is being tested and displayed with loop reading
  • RCD - Type AC, A, ACS, AS, auto & ramp
  • Type AC RCDs - Tests 10mA, 30mA, 100mA, 300mA & 500mA
  • Type A RCDs - Tests 10mA, 30mA, 100mA & 300mA

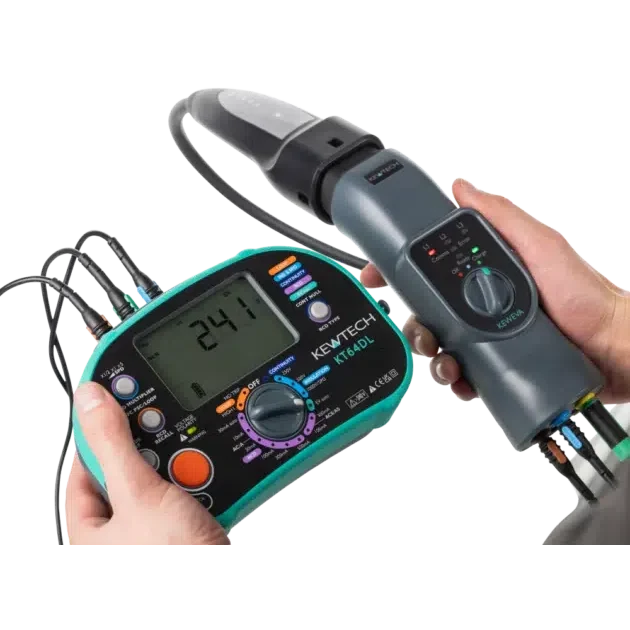

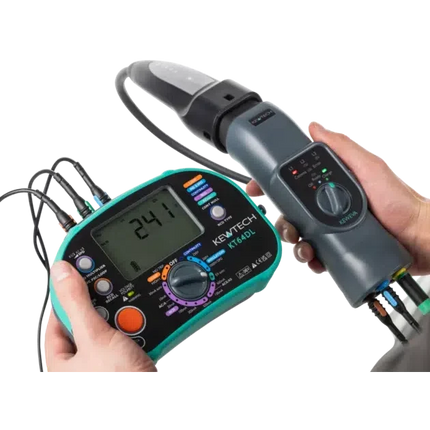

  • 6mA DC test at 0 & 180 for EV charge point testing
  • 30mA x 1 RCD test at 0 & 180
  • RCD auto test mode for 30 mA RCDs
  • RCD ramp test function
  • SPD testing
  • Gold plated probe tips for more consistent readings
  • Test leads auto-null for continuity mode
  • Polarity check
  • Instant correct wiring status check

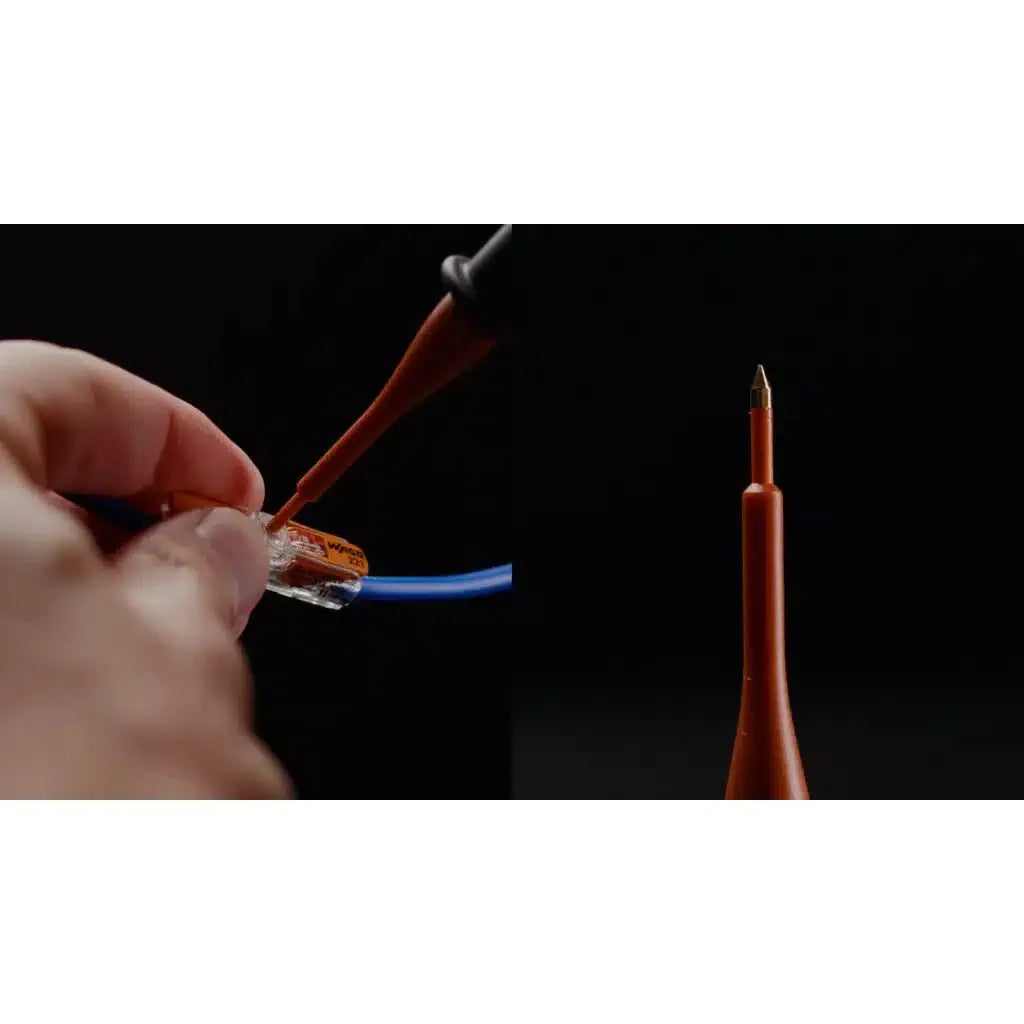

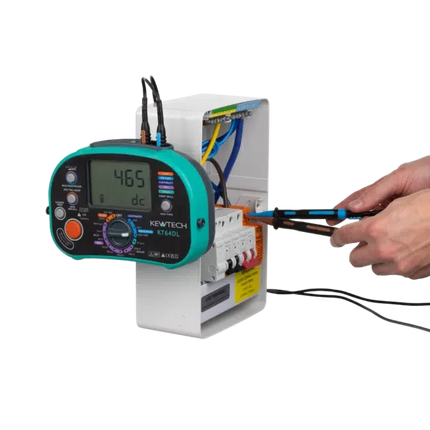

The Kewtech KT64DL 6-in-1 Multifunction Tester is the UK's most compact and lightweight option. With a robust loop testing circuit and auto RCD test, it ensures safe and efficient testing. The magnetic base makes hands-free testing possible, and the single rotary dial and large screen display make it easy to use. New slim probe tips allow for access to push fit connector blocks. Constant live voltage detection and continuous live monitoring protect against blown fuses and PCBs. Ideal for EV charge point testing and with an IP54 rating for added durability.


.

Batteries Included Yes
Battery Type 4 x AA
Battery Level Indicator Yes
Colour Black/Green
Continuity Check Yes
Continuity Range 0.00 Ω - 29.99 kΩ.
Display Type Auto-Backlit LCD
Guarantee 1 Year
IP Rating IP54
Insulation Resistance Measuring Range 0.1 MΩ - 1999 MΩ
Insulation Test Voltage 250V / 500V / 1000V
Loop Impedance Range Hi Current 0.01 Ω - 500.0 Ω / No Trip 0.01 Ω - 500.0 Ω
Product Range Multifunction Testers
RCD Settings ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
RCD Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA
RCD Trip Time 5 ms - 1999ms
Safety Ratings

Continuity and Insulation - 500V Cat III

Look and RCD - 30V Cat IV
Standards EN61010

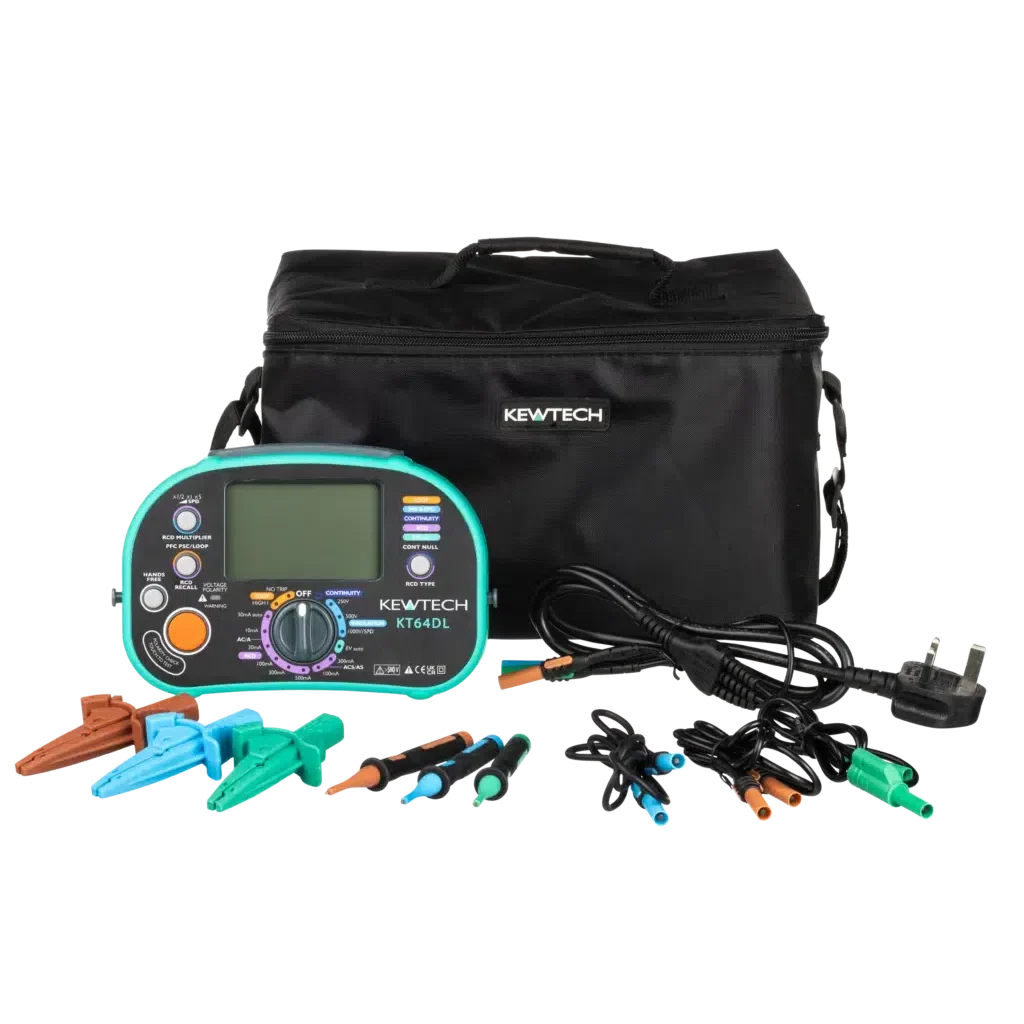

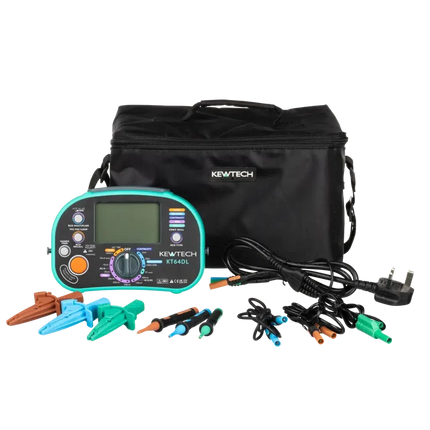

Supplied With ACC063 Distribution Board Test Lead Set, Kamp 12 Mains Lead, Batteries, Instruction Manual, Soft Carry Case and End of Line Calibration Certificate
Weight 2.23kg

Read more

Kewtech KT64DL 6-in-1 Compact Multifunction Tester with EV & SPD testing

Product form

SKU: KT64DL

6-in-1 Compact Multifunction Tester Kewtech KT64DL Continuity - switchable buzzer and auto null Insulation - 250, 500 & 1000V with... Read more

£769.71 ex VAT £923.65 inc VAT

Available 1-3 working days

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Batteries Included Yes
    Battery Type 4 x AA
    Battery Level Indicator Yes
    Colour Black/Green
    Continuity Check Yes
    Continuity Range 0.00 Ω - 29.99 kΩ.
    Display Type Auto-Backlit LCD
    Guarantee 1 Year
    IP Rating IP54
    Insulation Resistance Measuring Range 0.1 MΩ - 1999 MΩ
    Insulation Test Voltage 250V / 500V / 1000V
    Loop Impedance Range Hi Current 0.01 Ω - 500.0 Ω / No Trip 0.01 Ω - 500.0 Ω
    Product Range Multifunction Testers
    RCD Settings ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
    RCD Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA
    RCD Trip Time 5 ms - 1999ms
    Safety Ratings

    Continuity and Insulation - 500V Cat III

    Look and RCD - 30V Cat IV
    Standards EN61010
    Supplied With ACC063 Distribution Board Test Lead Set, Kamp 12 Mains Lead, Batteries, Instruction Manual, Soft Carry Case and End of Line Calibration Certificate
    Weight 2.23kg
