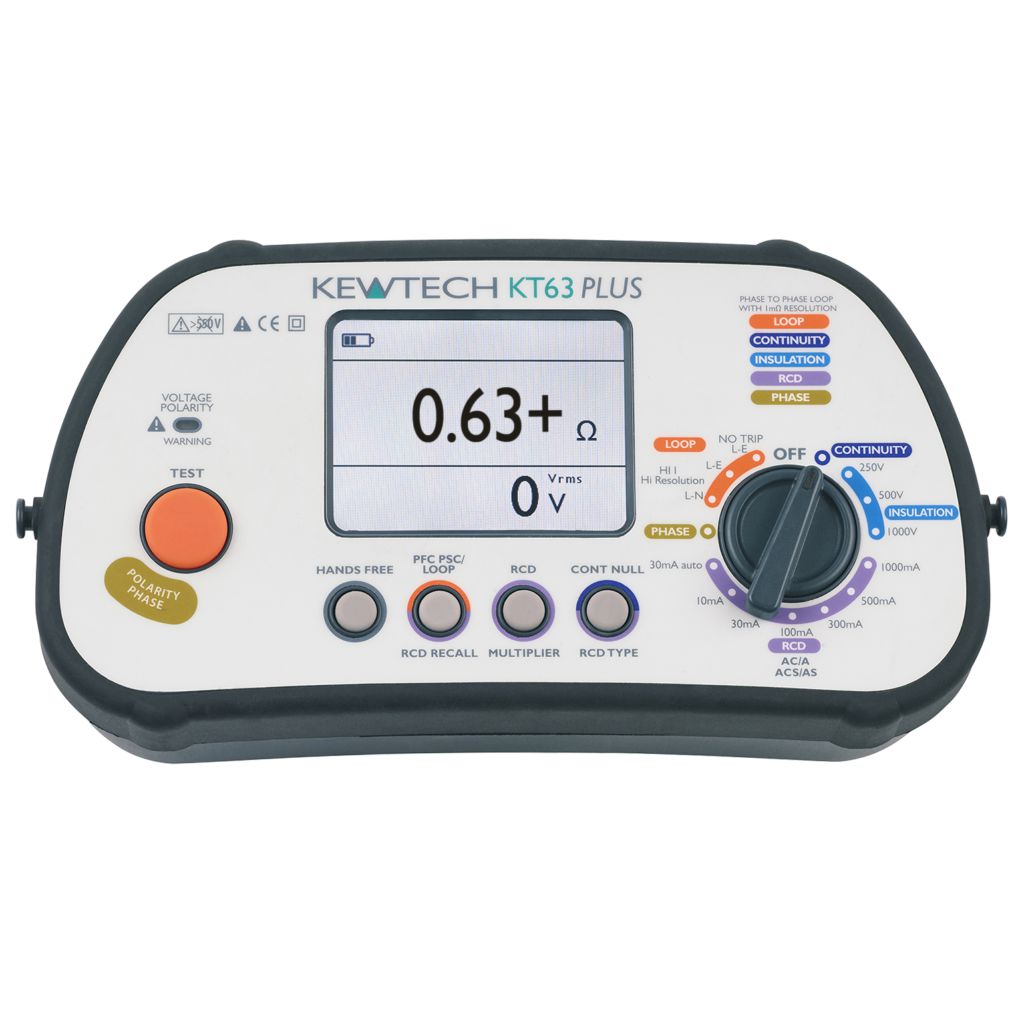

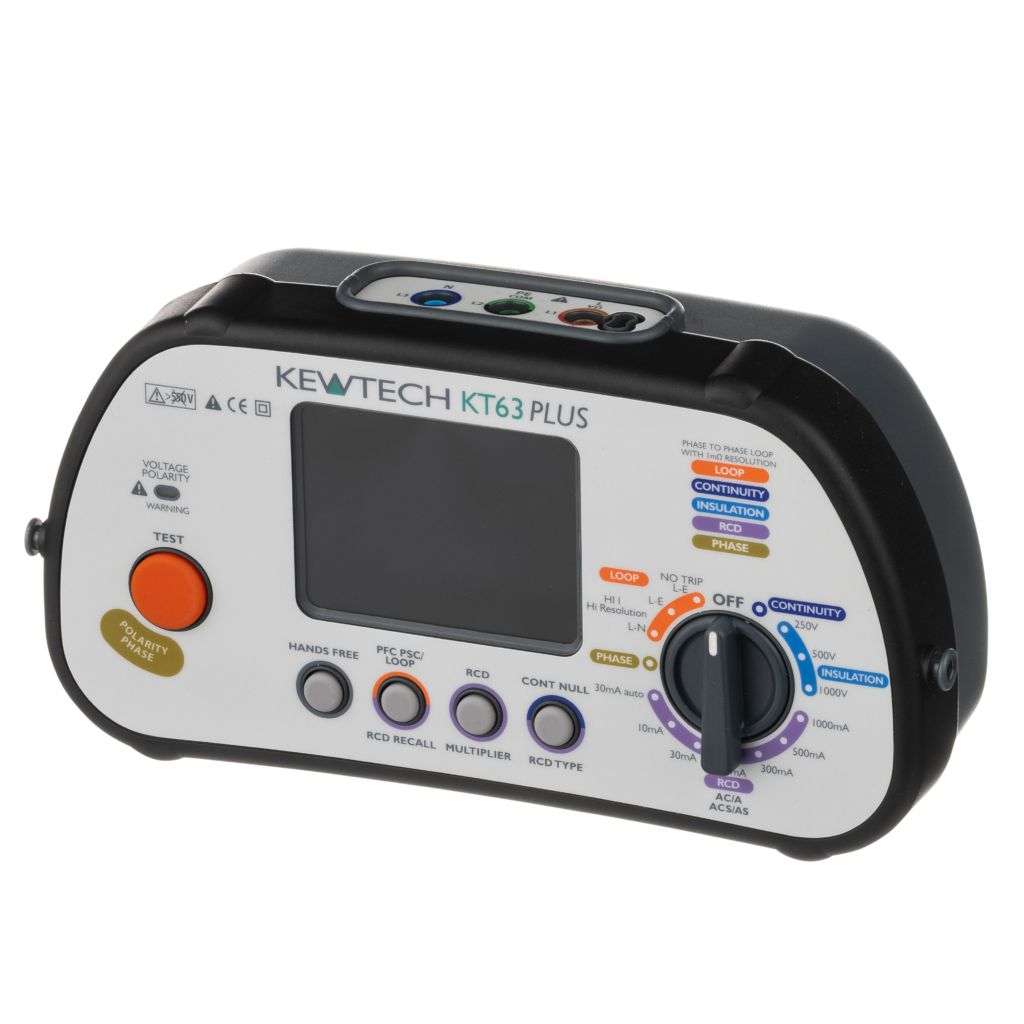

Kewtech KT63PLUS 6-in-1 Multifunction Installation Tester

Description

6-in-1 Multifunction Installation Tester

Kewtech KT63PLUS

  • Continuity - switchable buzzer and auto null
  • Insulation - 250, 500 & 1000V with auto discharge
  • Loop ATT low current
  • Loop high current 0.01 ohm and 0.001 ohm resolution
  • Phase to phase loop test & 55V loop test capability suitable for 110V CTE systems
  • PSC/PFC - clear indication of what is being tested and without the need to alter test probes
  • RCD - Type AC, A, ACS, AS, auto & ramp
  • Type AC RCDs - 10, 30, 100, 300, 500, 1000mA
  • Type A RCDs - 10, 30, 100, 300mA
  • Phase rotation
  • Special DNO polarity test
  • Memory for test lead resistance compensation

The Kewtech KT63PLUS 6-in-1 Multifunction Installation Tester provides professional-quality testing for installations. Its features include switchable buzzer continuity, insulation testing at 250, 500, and 1000V with auto discharge, loop ATT low current, and loop high current with 0.01 ohm and 0.001 ohm resolution. It has a phase to phase loop test and 55V loop test capability suitable for 110V CTE systems, and PSC and PFC tests with clear indication of what is being tested without needing to alter test probes. It also has AC, A, ACS, and AS RCD tests, with a range of 10, 30, 100, 300, 500, and 1000mA for type AC RCDs, and 10, 30, 100, and 300mA for type A RCDs. Further, it has a phase rotation test and a special DNO polarity test with memory for test lead resistance compensation.


.

Ac Voltage Measurement 440V AC
Batteries Included Yes
Battery Level Indicator Yes
Battery Size AA
Battery Type Alkaline
Colour Black/Grey
Continuity Check Yes
Continuity Range 0.01 Ω - 19.99 kΩ
Display Type LCD
Guarantee 1 Year
IP Rating IP54
Insulation Resistance Measuring Range 0.01 MΩ - 1000 MΩ
Insulation Test Voltage 250V / 500V / 1000V
Loop Impedance Range Hi Current 0.000 Ω - 500.0 Ω / No Trip 0.00 Ω - 500.0 Ω
Number of Batteries 8
Packaging Types Each
Rcd Settings ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
Rcd Test Range 10 mA / 30 mA / 100 mA / 300 mA / 500 mA
Safety Range CAT III 500V, CAT IV 300V
Standards EN61010

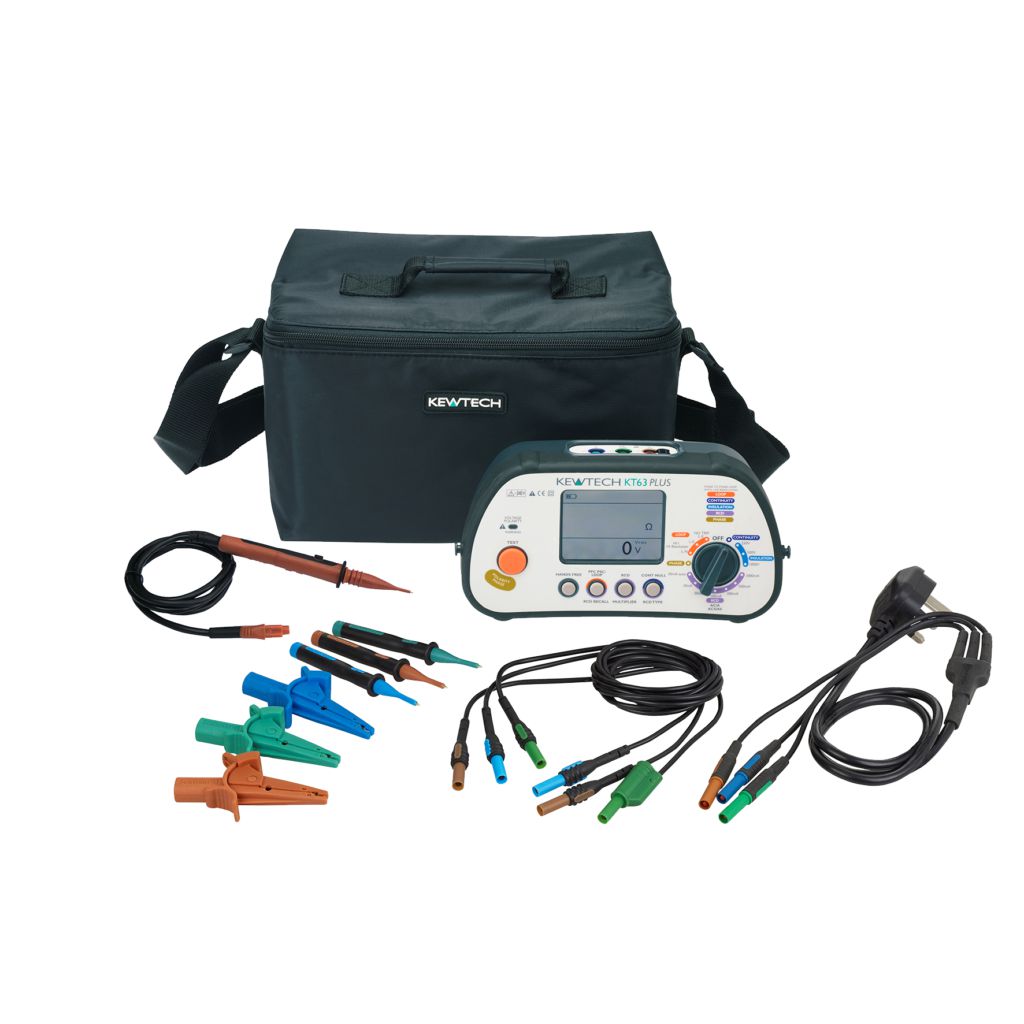

Supplied With ACC063 Distribution Board Test Lead Set, Mains Lead, Batteries, Instruction Manual, Soft Carry Case and Calibration Certificate
