Solar I-V Curve Tester

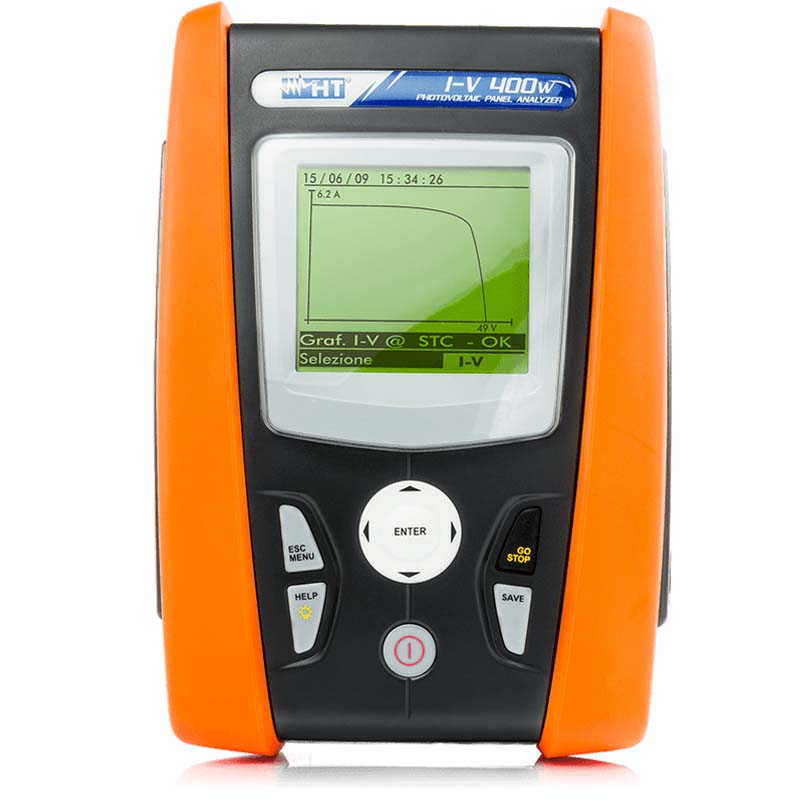

TIS I-V400W
- I-V curve analysis with 128 data points – Measures Voc, Isc, Pmax, Vmpp, Impp, and Fill Factor
- High-voltage capability – Supports up to 1000V DC / 15A DC
- Direct STC comparison – Reference conditions (1000W/m², 25°C) for performance verification
- Irradiance & temperature measurement – Uses an external probe and reference cell
- Remote testing with SOLAR02 – Enables simultaneous irradiance & temperature logging
- 4-terminal measurement method – Minimizes resistance errors for precise readings
- Built-in PV module database – Stores up to 30 module profiles for efficiency analysis
- Internal memory & PC connectivity – Recall stored data on display or transfer via USB/optical interface
- User-friendly interface – On-screen help, auto power-off, and backlit display for ease of use
- Robust and portable – Compact design, lightweight, and field-ready construction
The I-V400W is a professional-grade I-V curve tester designed to measure and analyze key performance parameters of photovoltaic (PV) modules and strings up to 1000V and 15A. Ideal for solar installers and maintenance professionals, this advanced tool enables accurate field testing, efficiency evaluation, and compliance verification.
With an internal PV module database, real-time irradiance and temperature measurement, and compatibility with the SOLAR02 remote unit, the I-V400W ensures precise performance validation. The 4-terminal measurement method eliminates resistance compensation errors, guaranteeing highly accurate and reliable results in any test environment.
The I-V400W is a must-have tool for PV professionals, installers, and maintenance teams, offering high-precision measurement, efficiency analysis, and regulatory compliance verification for solar system performance testing.
.
| Brand |
Test Instrument Solutions
|
| Power Supply |
6x 1.5V alkaline batteries type AA LR06 |
Display
|
128 x 128 pxl with backlight |
| Duration for I-V Curve |
>200 curves |
| Supplied with |
• KITGSC4 Set of 4 cables + 4 alligator clips
• KITPCMC3 Set of 2 adapters with connectors MC3
• KITPCMC4 Set of 2 adapters with connectors MC4
• TOPVIEW2006 Windows software + optical/ USB C2006 cable
• VA500 Rigid carrying case
• User manual
• ISO9000 Calibration certificate
|
