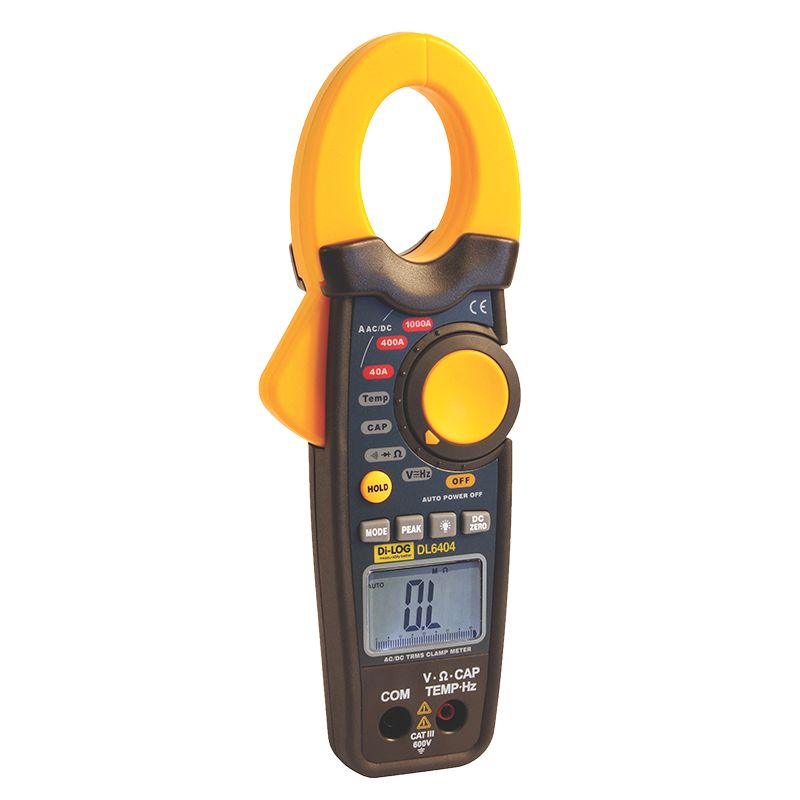

Di-Log DL6404 1000 Amp AC/DC RMS Digital Clamp Meter

Description

1000 Amp AC/DC True RMS Digital Clamp Meter

Di-Log DL6404

  • True RMS Current and voltage readings
  • Audible Continuity
  • Resistance up to 40 MΩ
  • Temperature thermocouple and K-Type adaptor supplied
  • Frequency and capacitance
  • 30 mm jaw opening
  • 1000 amp AC/DC Current reading
  • Electronic overload protection

The top of the range DL6404 provides True RMS reading on AC current and AC voltages allowing accurate measurement regardless of the wave form. This makes it the ideal instrument for commercial and industrial applications where non linear loads are present.

The 40 segment analogue bar graph in addition to the 4000 count LCD provides clear and precise indication of readings.

The slim design combined with the tear shaped jaw makes it an ideal unit for use in crowded panels and tight spaces.



.



AC Current True RMS 0.01A - 1000A
AC Voltage True RMS 0.1mV - 600V
DC Current 0.01A - 1000A
DC Voltage Measurement 0.1mV - 600V
Resistance 0.1Ω - 40MΩ
Auto Power Down Yes
Battery Level Indicator Yes
Battery Size 1 x 9 V battery PP3
Colour Yellow/Grey
Continuity Check Yes
Data Hold Yes
Display Count 2000
Display Type LCD
Guarantee 1 Year
Jaw Opening Capability 30mm
Product Range Clamp Meters
Safety Range CAT II 600V, CAT III 300V
Type AC/DC True RMS Clamp Meter

Di-Log DL6404 1000 Amp AC/DC RMS Digital Clamp Meter

Product form

SKU: DL6404

1000 Amp AC/DC True RMS Digital Clamp Meter Di-Log DL6404 True RMS Current and voltage readings Audible Continuity Resistance up... Read more

Free pickup in our shop(s)

£111.49 ex VAT £133.79 inc VAT

Next day delivery

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification



    AC Current True RMS 0.01A - 1000A
    AC Voltage True RMS 0.1mV - 600V
    DC Current 0.01A - 1000A
    DC Voltage Measurement 0.1mV - 600V
    Resistance 0.1Ω - 40MΩ
    Auto Power Down Yes
    Battery Level Indicator Yes
    Battery Size 1 x 9 V battery PP3
    Colour Yellow/Grey
    Continuity Check Yes
    Data Hold Yes
    Display Count 2000
    Display Type LCD
    Guarantee 1 Year
    Jaw Opening Capability 30mm
    Product Range Clamp Meters
    Safety Range CAT II 600V, CAT III 300V
    Type AC/DC True RMS Clamp Meter
      Downloads

    Description

    1000 Amp AC/DC True RMS Digital Clamp Meter

    Di-Log DL6404

    • True RMS Current and voltage readings
    • Audible Continuity
    • Resistance up to 40 MΩ
    • Temperature thermocouple and K-Type adaptor supplied
    • Frequency and capacitance
    • 30 mm jaw opening
    • 1000 amp AC/DC Current reading
    • Electronic overload protection

    The top of the range DL6404 provides True RMS reading on AC current and AC voltages allowing accurate measurement regardless of the wave form. This makes it the ideal instrument for commercial and industrial applications where non linear loads are present.

    The 40 segment analogue bar graph in addition to the 4000 count LCD provides clear and precise indication of readings.

    The slim design combined with the tear shaped jaw makes it an ideal unit for use in crowded panels and tight spaces.



    .



    AC Current True RMS 0.01A - 1000A
    AC Voltage True RMS 0.1mV - 600V
    DC Current 0.01A - 1000A
    DC Voltage Measurement 0.1mV - 600V
    Resistance 0.1Ω - 40MΩ
    Auto Power Down Yes
    Battery Level Indicator Yes
    Battery Size 1 x 9 V battery PP3
    Colour Yellow/Grey
    Continuity Check Yes
    Data Hold Yes
    Display Count 2000
    Display Type LCD
    Guarantee 1 Year
    Jaw Opening Capability 30mm
    Product Range Clamp Meters
    Safety Range CAT II 600V, CAT III 300V
    Type AC/DC True RMS Clamp Meter
