Armeg CDD152 152mm Dry Diamond Core Drill Bit

Description

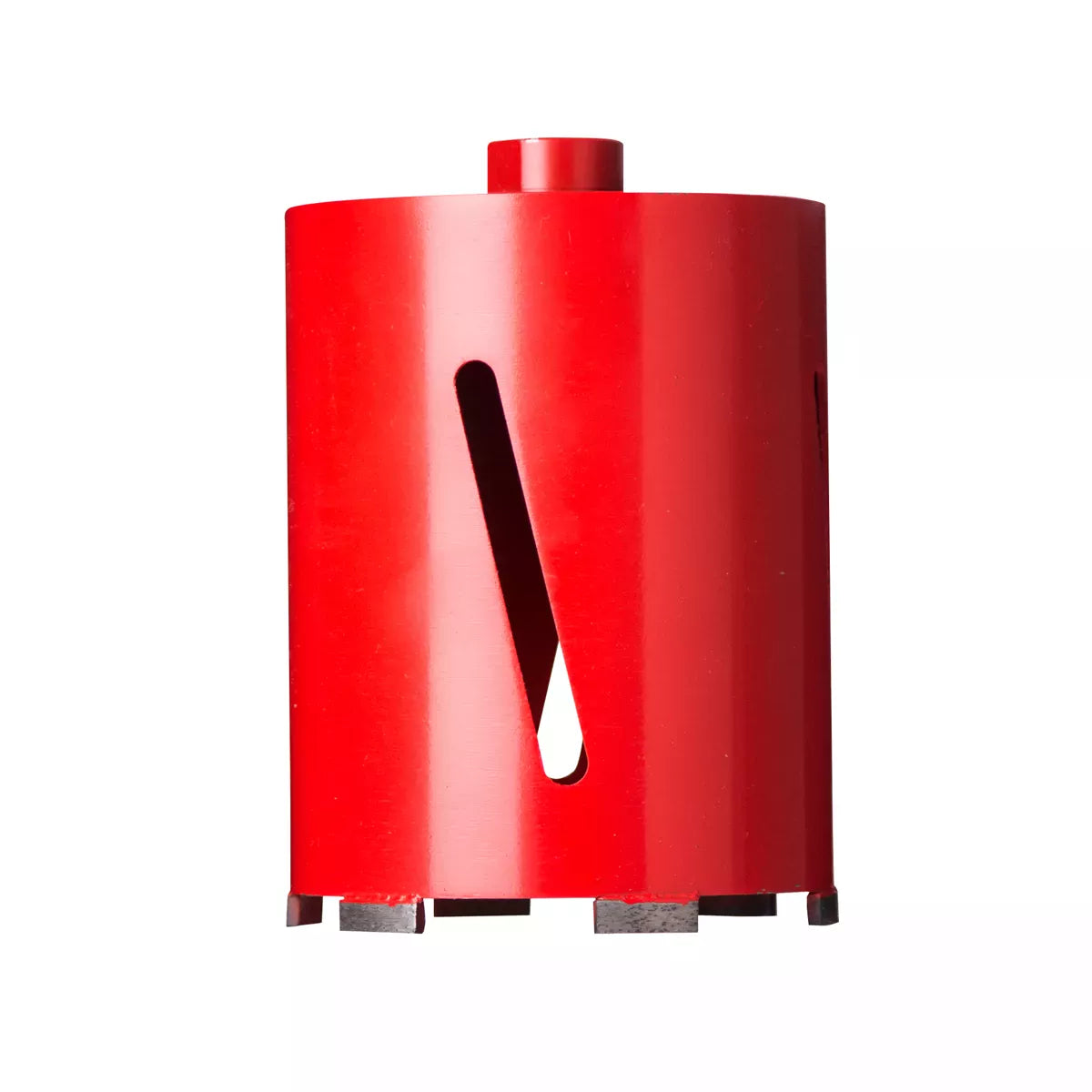

152mm Dry Diamond Core Drill Bit

Armeg CDD152

  • Armeg's range of Dry Diamond Core Drills provide the ultimate in accuracy of cut and cleanliness of breakout

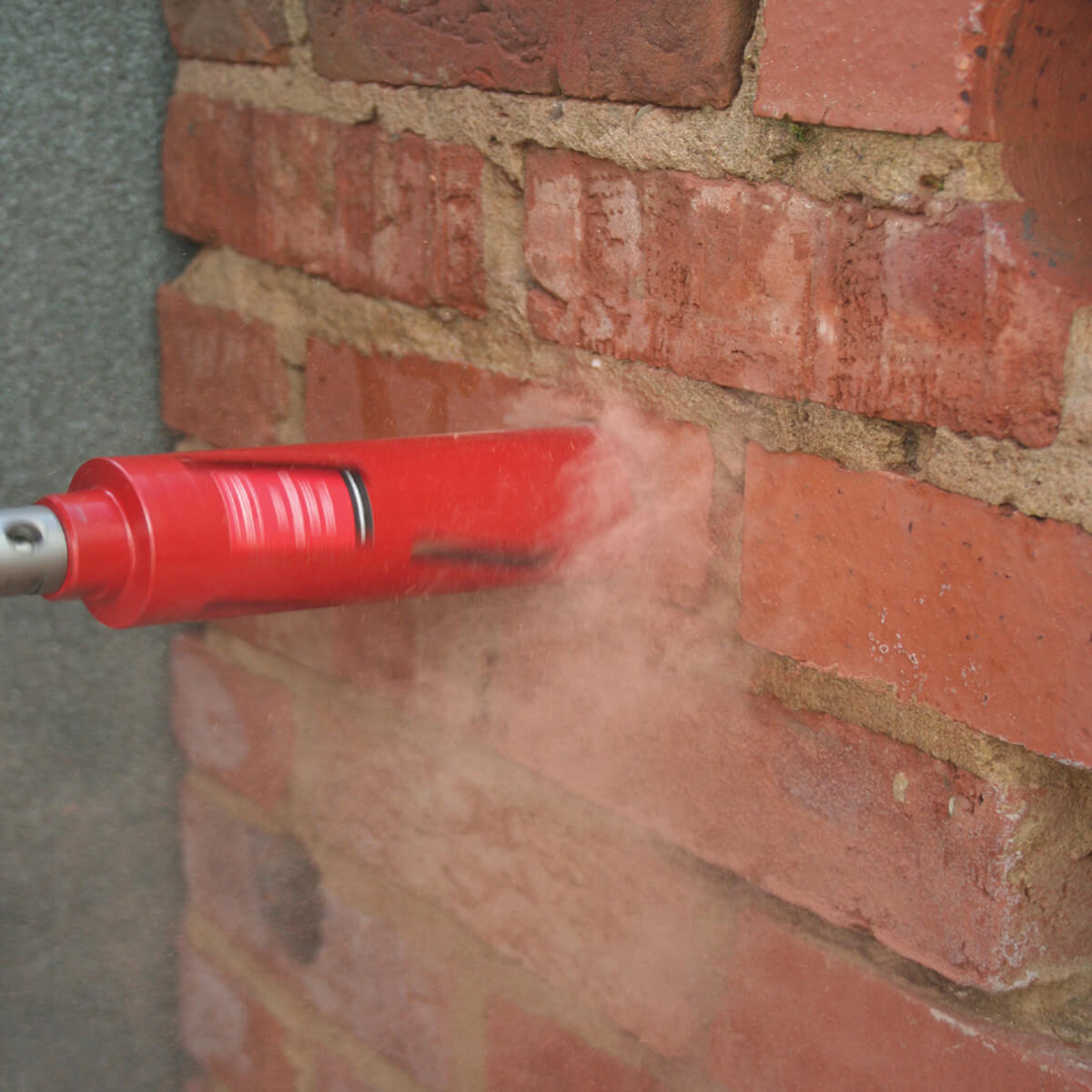

  • The Core's are designed with a 130mm throat for deep core drilling which allows them to core through a standard brick in one action - no need to stop and break out the core
  • The diamond grit segments are manufactured with a high concentration of premium synthetic diamond grit. This allows the cores to be used on 'rotary only' for cleaner exit holes, improved performance and product life
  • The Core's also feature the optimum segment configuration as the segments sit in balance with the body and give relief both internally and externally. This results in smoother and more accurate cutting and helps material core removal
  • 1/2 inch BSP thread system
  • Ideally suited to lightweight building materials, ordinary facing brickwork and blockwork up to 10n/mm2; General concrete; Soft bricks; Lightweight blocks; Natural Stone; Limestone
  • For the optimum performance it is recommended to use a power tool with a min drive power of 850w

Armeg's CDD152 152mm Diamond Core Drill delivers precision cutting with exceptional cleanliness. Engineered with a 130mm throat depth, it cores through standard brick in a single pass without interruption. Premium synthetic diamond grit segments ensure superior performance on rotary-only operation, producing cleaner exit holes and extended tool life. The balanced segment configuration provides optimal relief both internally and externally, enabling smoother, more accurate cuts whilst facilitating effortless material removal. Professional-grade engineering for demanding drilling applications.

.

Brand Armeg
Colour Red
Guarantee 1 Year
Packaging Types Each
Video Url https://www.youtube.com/watch?feature=player_embedded&v=0r2CVPWfbvI
Weight 2.696kg

Read more

Armeg CDD152 152mm Dry Diamond Core Drill Bit

Product form

SKU: CDD152

152mm Dry Diamond Core Drill Bit Armeg CDD152 Armeg's range of Dry Diamond Core Drills provide the ultimate in accuracy... Read more

Free pickup in our shop(s)

£79.27 ex VAT £95.12 inc VAT

Next day delivery

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Sep 23, 2026 15:00:00 +0100
    • Free shipping on all orders above £100 + vat
      Specification
    Brand Armeg
    Colour Red
    Guarantee 1 Year
    Packaging Types Each
    Video Url https://www.youtube.com/watch?feature=player_embedded&v=0r2CVPWfbvI
    Weight 2.696kg
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    152mm Dry Diamond Core Drill Bit

    Armeg CDD152

    • Armeg's range of Dry Diamond Core Drills provide the ultimate in accuracy of cut and cleanliness of breakout
    • The Core's are designed with a 130mm throat for deep core drilling which allows them to core through a standard brick in one action - no need to stop and break out the core
    • The diamond grit segments are manufactured with a high concentration of premium synthetic diamond grit. This allows the cores to be used on 'rotary only' for cleaner exit holes, improved performance and product life
    • The Core's also feature the optimum segment configuration as the segments sit in balance with the body and give relief both internally and externally. This results in smoother and more accurate cutting and helps material core removal
    • 1/2 inch BSP thread system
    • Ideally suited to lightweight building materials, ordinary facing brickwork and blockwork up to 10n/mm2; General concrete; Soft bricks; Lightweight blocks; Natural Stone; Limestone
    • For the optimum performance it is recommended to use a power tool with a min drive power of 850w

    Armeg's CDD152 152mm Diamond Core Drill delivers precision cutting with exceptional cleanliness. Engineered with a 130mm throat depth, it cores through standard brick in a single pass without interruption. Premium synthetic diamond grit segments ensure superior performance on rotary-only operation, producing cleaner exit holes and extended tool life. The balanced segment configuration provides optimal relief both internally and externally, enabling smoother, more accurate cuts whilst facilitating effortless material removal. Professional-grade engineering for demanding drilling applications.

    .

    Brand Armeg
    Colour Red
    Guarantee 1 Year
    Packaging Types Each
    Video Url https://www.youtube.com/watch?feature=player_embedded&v=0r2CVPWfbvI
    Weight 2.696kg

    Read more
