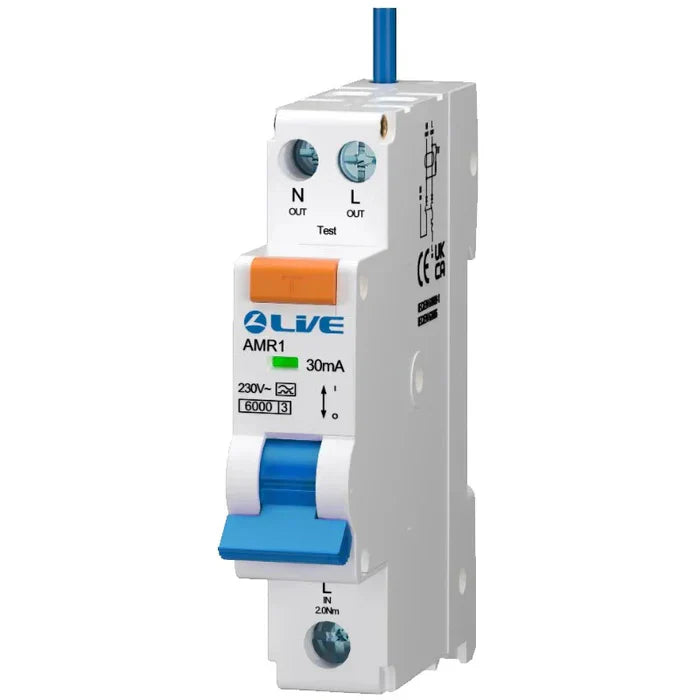

Live Electrical Single Module 6kA C Curve 30mA Bidirectional Mini RCBO Type A

Description

Single Module 6kA C Curve 30mA Bidirectional Mini RCBO Type A

Live Electrical

  • 1Pole + N switched
  • Bidirectional
  • Type A RCBO - Detects and responds to both AC and Pulsating DC Faults
  • 30mA C-Curve
  • 6kA
  • MCB sized
  • Single Module width
  • Max. Terminal capacity: 16mm² L in, 10mm² L out
  • Designed for use with Live Electrical consumer units
  • Complies with BS EN 61009-1

Live Electrical Single Module Bidirectional Mini RCBO C Curve 6kA 30mA Type A Professional-grade residual current device offering dual protection against AC and pulsating DC faults. This single pole and switched neutral RCBO combines MCB-sized compact design with robust 6kA short circuit rating, making it ideal for modern consumer unit installations. Type A sensitivity at 30mA provides rapid fault detection and response, whilst C-curve tripping characteristics suit circuits with moderate inrush currents. Bidirectional operation ensures protection in both directions of current flow. Terminal capacity accommodates up to 16mm² incoming and 10mm² outgoing conductors. Engineered specifically for Live Electrical consumer units and fully compliant with BS EN 61009-1. Rated for 4000 electrical cycles, delivering reliable long-term performance in demanding electrical installations.

.

Brand Live Electrical
Number of Poles Single Pole and Switched Neutral
Short Circuit Rating 6kA
Tripping Characteristics C Curve
RCD Type A
Tripping Sensitivity 30mA
Electrical Endurance 4000 Cycles

Read more

Live Electrical Single Module 6kA C Curve 30mA Bidirectional Mini RCBO Type A

Product form

SKU: AMR106C-030

Single Module 6kA C Curve 30mA Bidirectional Mini RCBO Type A Live Electrical 1Pole + N switched  Bidirectional Type A... Read more

Free pickup in our shop(s)

£9.29 ex VAT £11.15 inc VAT

Next day delivery

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Oct 29, 2026 15:00:00 +0000
    • Free shipping on all orders above £100 + vat
      Specification

    Brand Live Electrical
    Number of Poles Single Pole and Switched Neutral
    Short Circuit Rating 6kA
    Tripping Characteristics C Curve
    RCD Type A
    Tripping Sensitivity 30mA
    Electrical Endurance 4000 Cycles
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Single Module 6kA C Curve 30mA Bidirectional Mini RCBO Type A

    Live Electrical

    • 1Pole + N switched
    • Bidirectional
    • Type A RCBO - Detects and responds to both AC and Pulsating DC Faults
    • 30mA C-Curve
    • 6kA
    • MCB sized
    • Single Module width
    • Max. Terminal capacity: 16mm² L in, 10mm² L out
    • Designed for use with Live Electrical consumer units
    • Complies with BS EN 61009-1

    Live Electrical Single Module Bidirectional Mini RCBO C Curve 6kA 30mA Type A Professional-grade residual current device offering dual protection against AC and pulsating DC faults. This single pole and switched neutral RCBO combines MCB-sized compact design with robust 6kA short circuit rating, making it ideal for modern consumer unit installations. Type A sensitivity at 30mA provides rapid fault detection and response, whilst C-curve tripping characteristics suit circuits with moderate inrush currents. Bidirectional operation ensures protection in both directions of current flow. Terminal capacity accommodates up to 16mm² incoming and 10mm² outgoing conductors. Engineered specifically for Live Electrical consumer units and fully compliant with BS EN 61009-1. Rated for 4000 electrical cycles, delivering reliable long-term performance in demanding electrical installations.

    .

    Brand Live Electrical
    Number of Poles Single Pole and Switched Neutral
    Short Circuit Rating 6kA
    Tripping Characteristics C Curve
    RCD Type A
    Tripping Sensitivity 30mA
    Electrical Endurance 4000 Cycles
