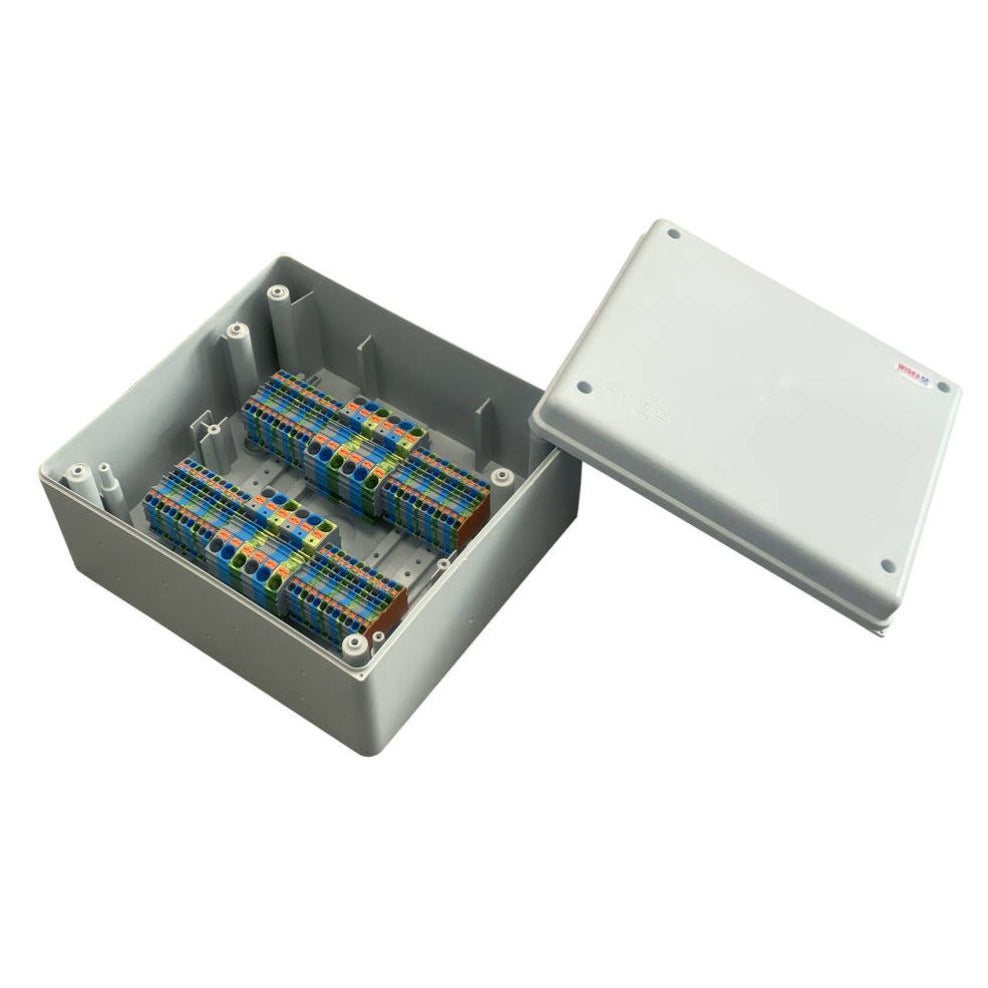

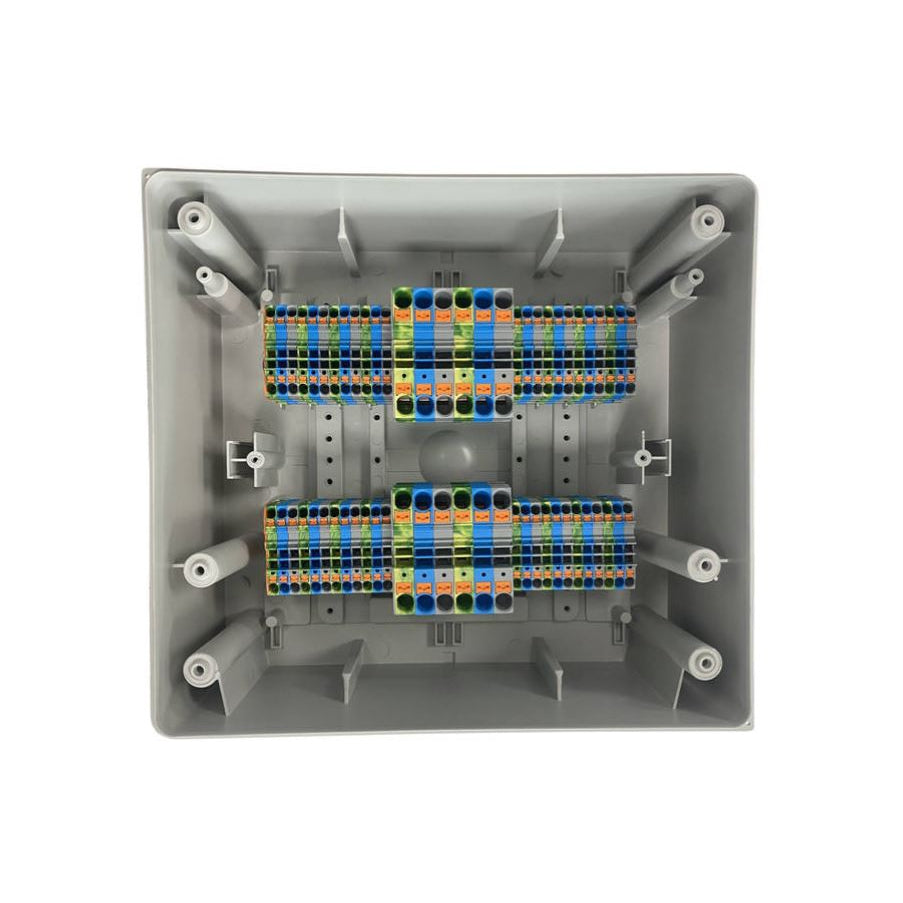

Wiska 10112389 823 CUR/P 20 Way Consumer Unit Relocation Kit
Wiska 10112389 823 CUR/P 20 Way Consumer Unit Relocation Kit
SKU: 10112389
823 CUR/P 20 Way Consumer Unit Relocation Kit Wiska 10112389 User-friendly installation process High-quality materials for durability Ample space with... Read more
£164.32 ex VAT £197.18 inc VAT
-
Guaranteed secure & safe checkout.
- Free shipping on all orders above £100 + vat
Specification
| Colour | Grey |
| Depth | 160mm |
| Dimensions | (L)270 mm x (W)250 mm x (D)160 mm |
| Guarantee | 1 Year |
| IP Rating | IP65 |
| Length | 270mm |
| Material | Polypropylene |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Packaging Types | Each |
| Product Range | CUR823 |
| Impact Resistance |
IK08 |
| Type | Junction Box |
| Supplied with |

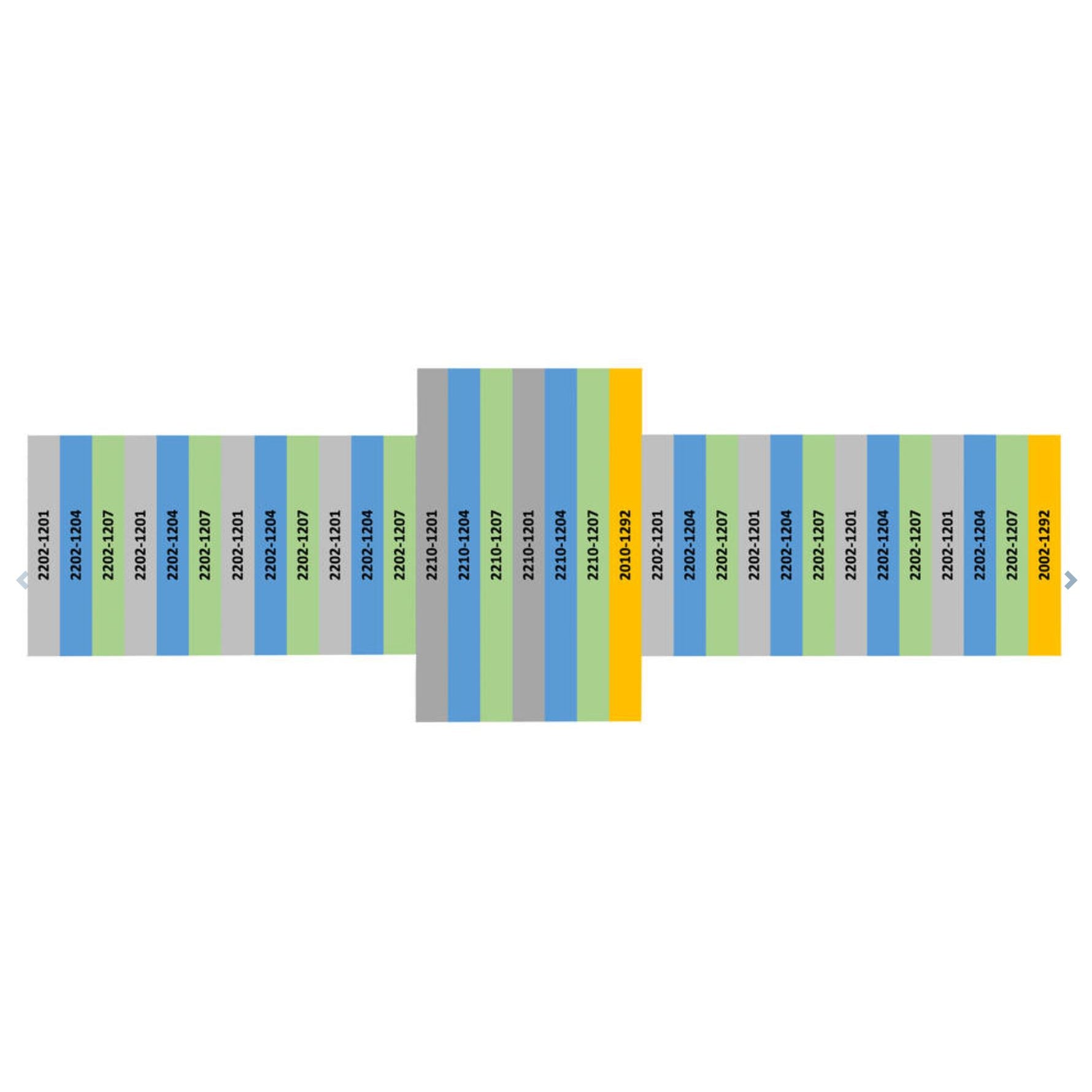

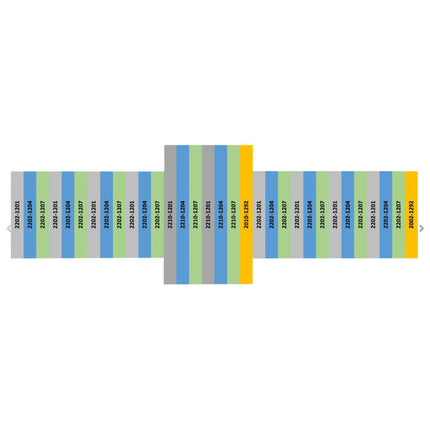

Terminals 2202-1201 - Grey 2 conductor DIN-rail terminal with button push-in up to 4mm (x16) 2202-1204 - Blue 2 conductor DIN-rail terminal with button push-in up to 4mm (x16) 2202-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push-in up to 4mm (x16) 2002-1292 - Orange Endplate for 2202 (x2) 2210-1201 - Grey 2 conductor DIN-rail terminal with button push-in up to 16mm (x4) 2210-1204 - Blue 2 conductor DIN-rail terminal with button push-in up to 16mm (x4) 2210-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push-in up to 16mm (x4) 2010-1292 - Orange Endplate for 2210 (x2) |
